Auxiliary Power Outlet

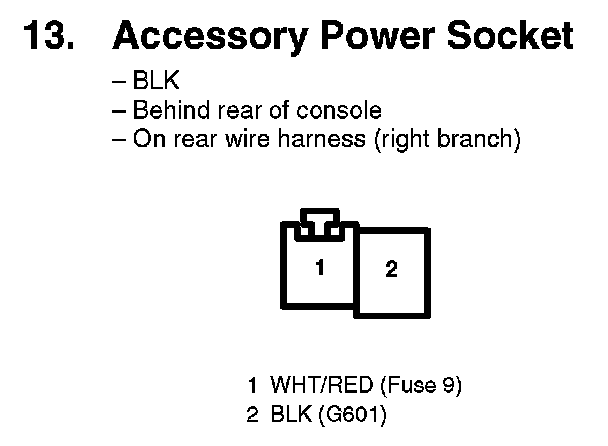

13. Accessory Power Socket:

181. IG2 Relay And Accessory Power Socket Relay:
