Home >> Honda >> 2007 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Dome Lamp

Dome Lamp

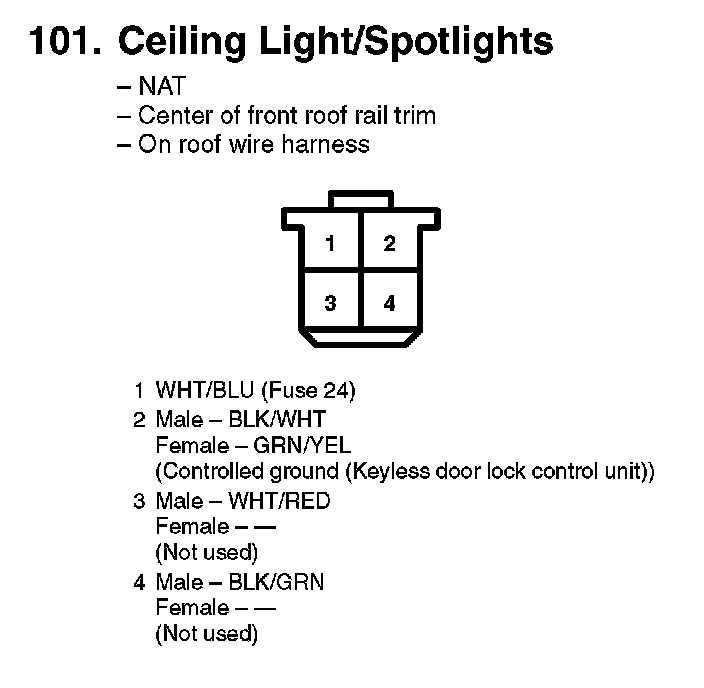

101. Ceiling Light/Spotlights:
