Fuse Block
Fuse Block

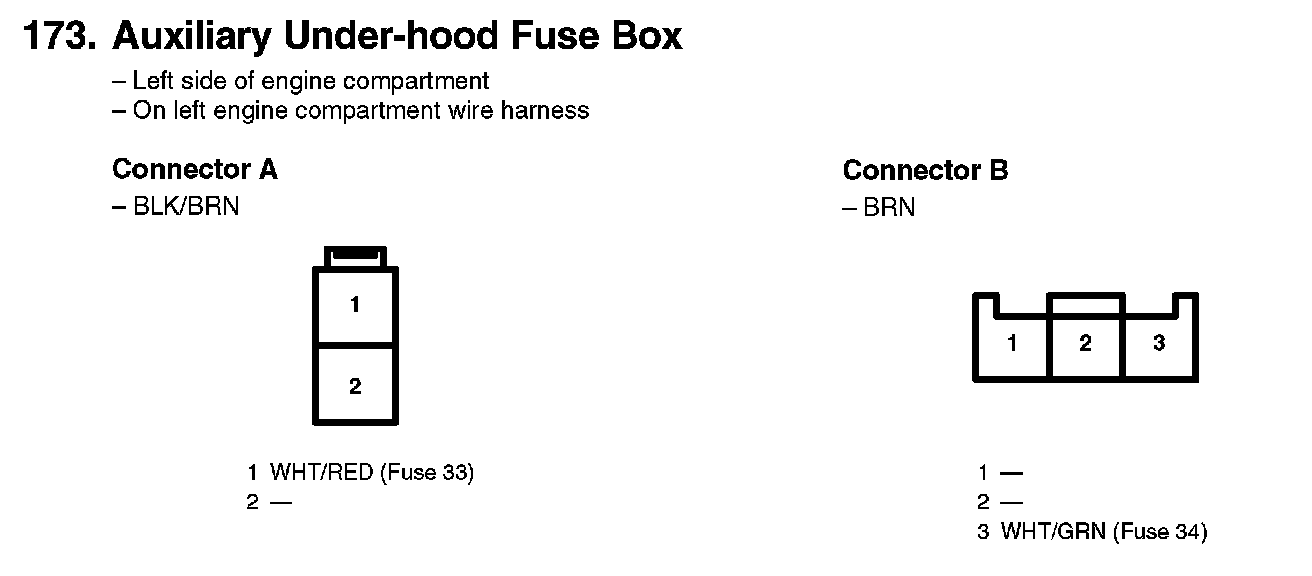

173. Auxiliary Under-hood Fuse Box:
185. Under-dash Fuse/Relay Box:
185. Under-dash Fuse/Relay Box:
186. Under-hood Fuse/Relay Box, Main:
