S2000 L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Starting System
Keyless Starting System

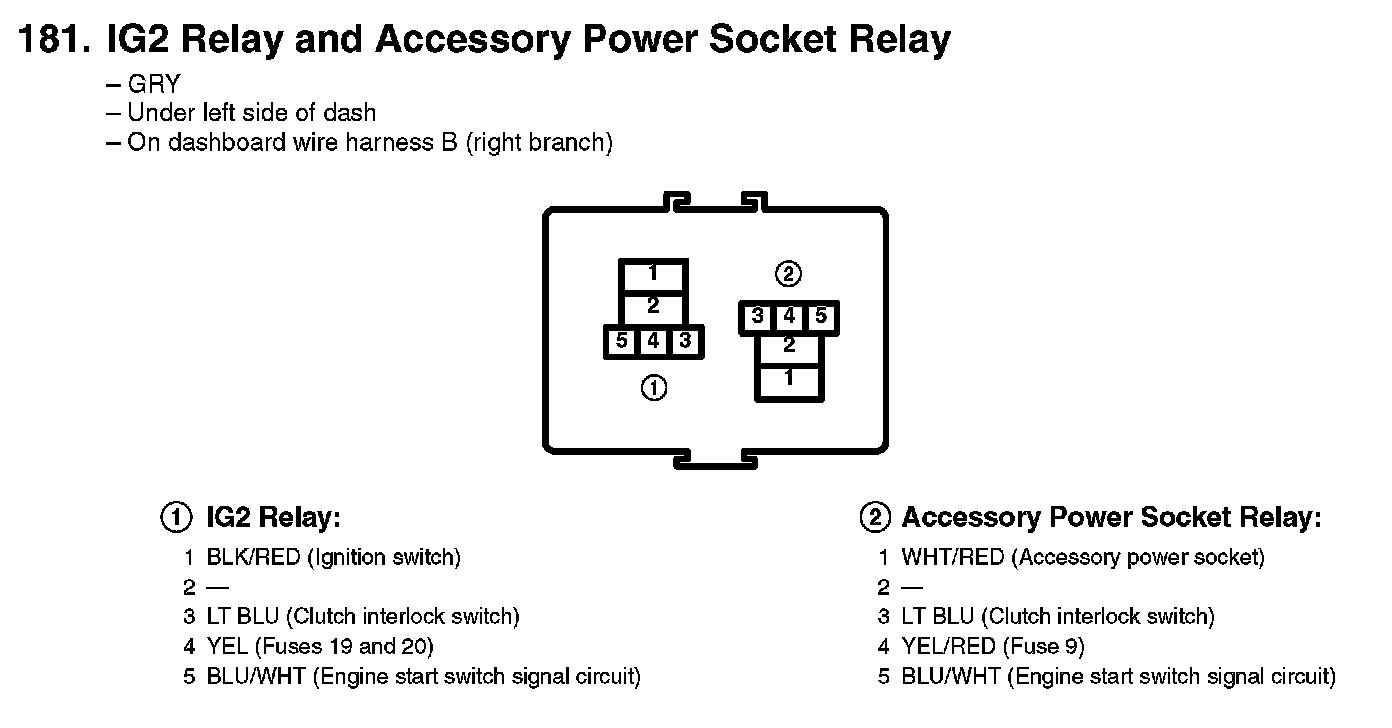

181. IG2 Relay And Accessory Power Socket Relay:
