Home >> Honda >> 2007 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Marker Lamp

Marker Lamp

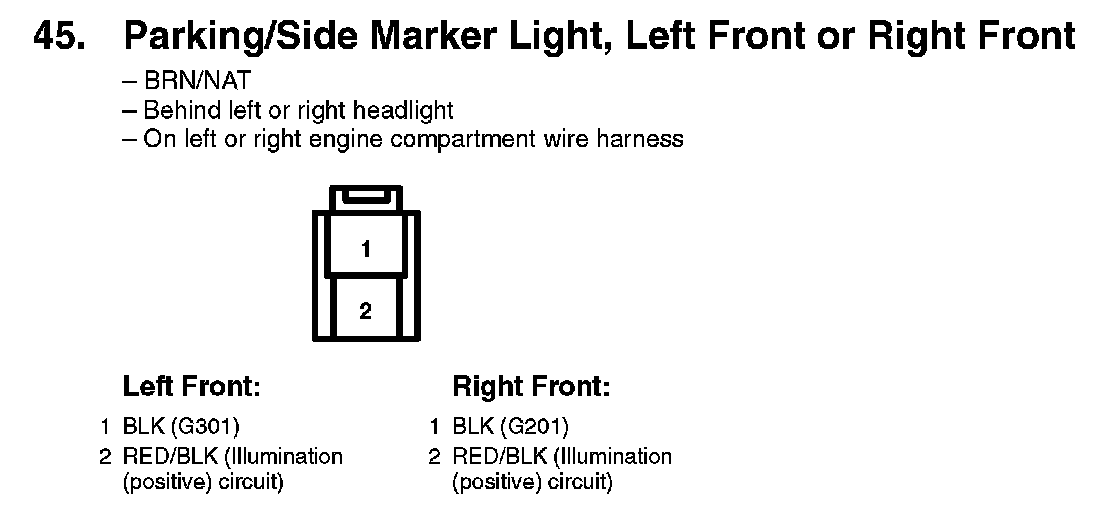

45. Parking/Side Marker Light, Left Front Or Right Front:
