Home >> Honda >> 2007 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module

Steering Control Module

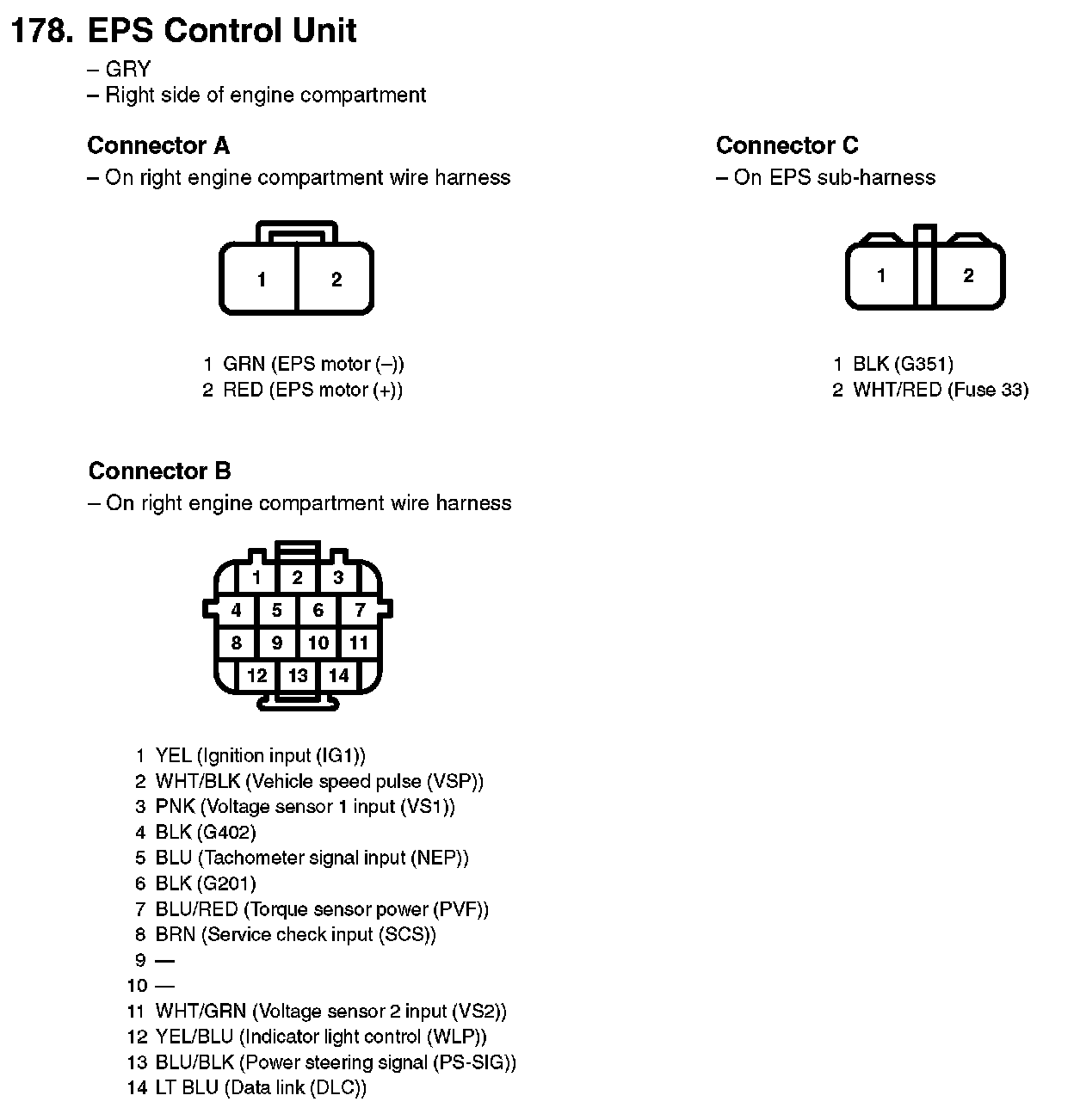

178. EPS Control Unit:
