Home >> Honda >> 2007 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Tachometer Connector

Tachometer Connector

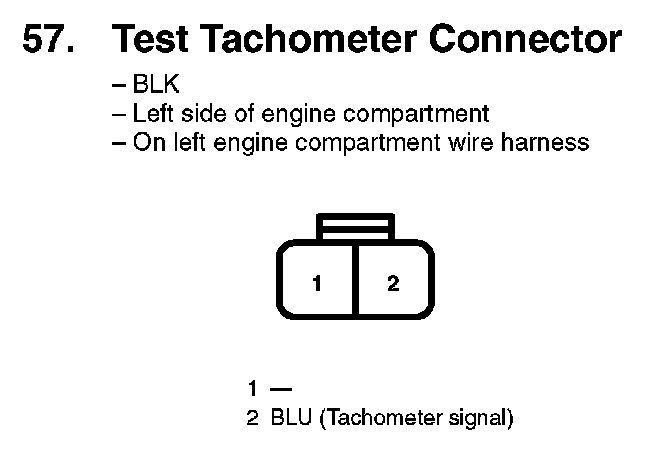

57. Test Tachometer Connector:
