Wheel Speed Sensor

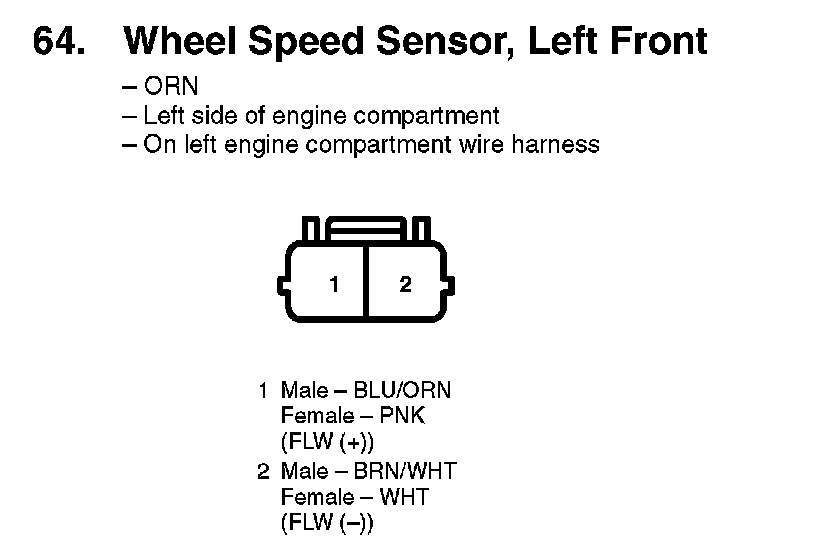

64. Wheel Speed Sensor, Left Front:

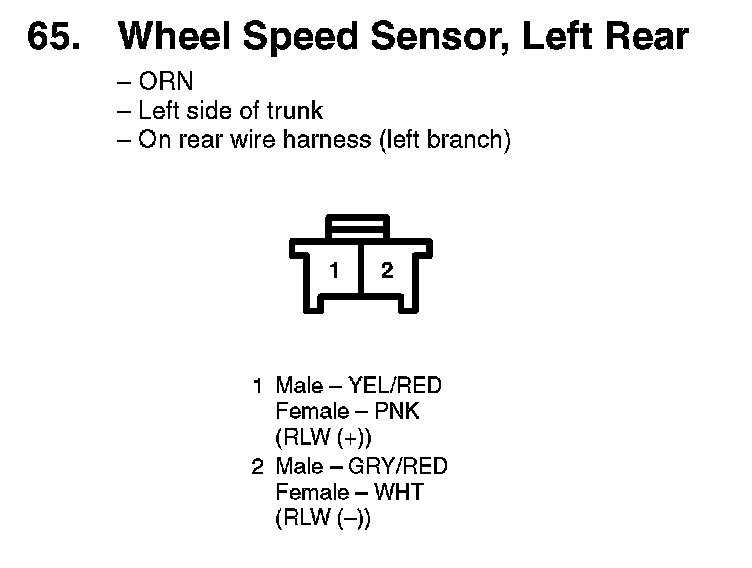

65. Wheel Speed Sensor, Left Rear:

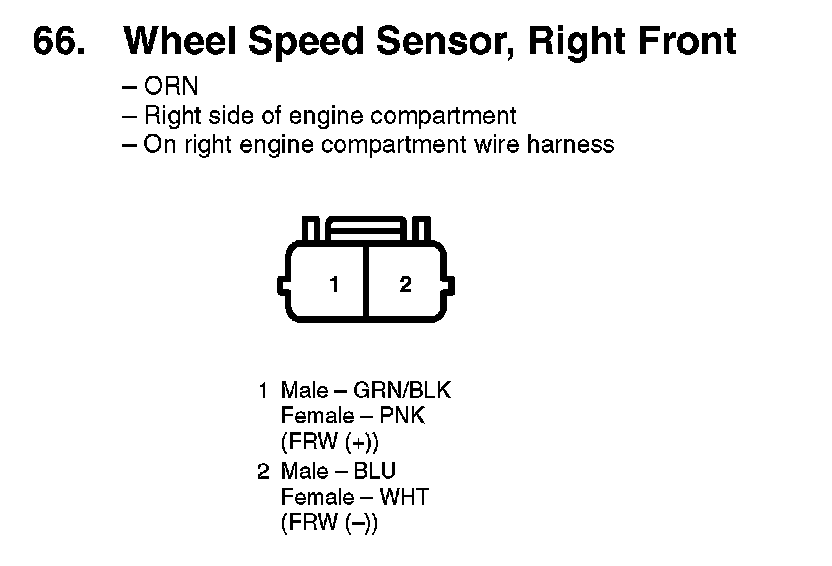

66. Wheel Speed Sensor, Right Front:

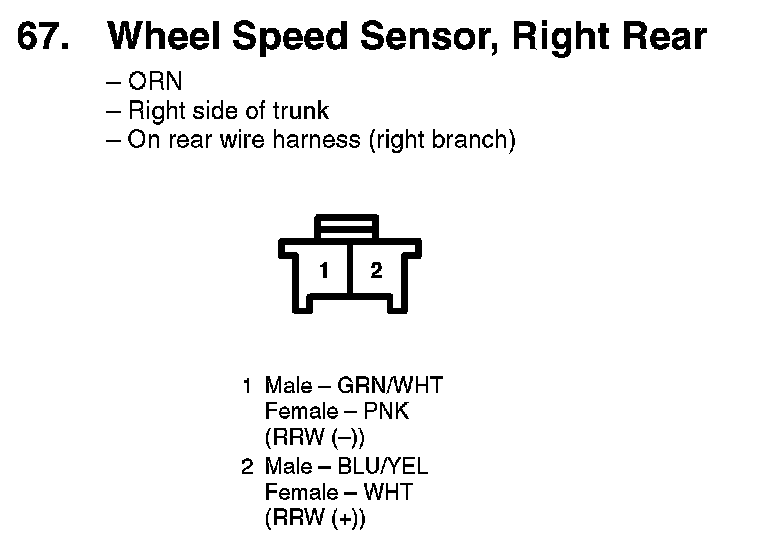

67. Wheel Speed Sensor, Right Rear:
