Home >> Honda >> 2007 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Switch

Wiper Switch

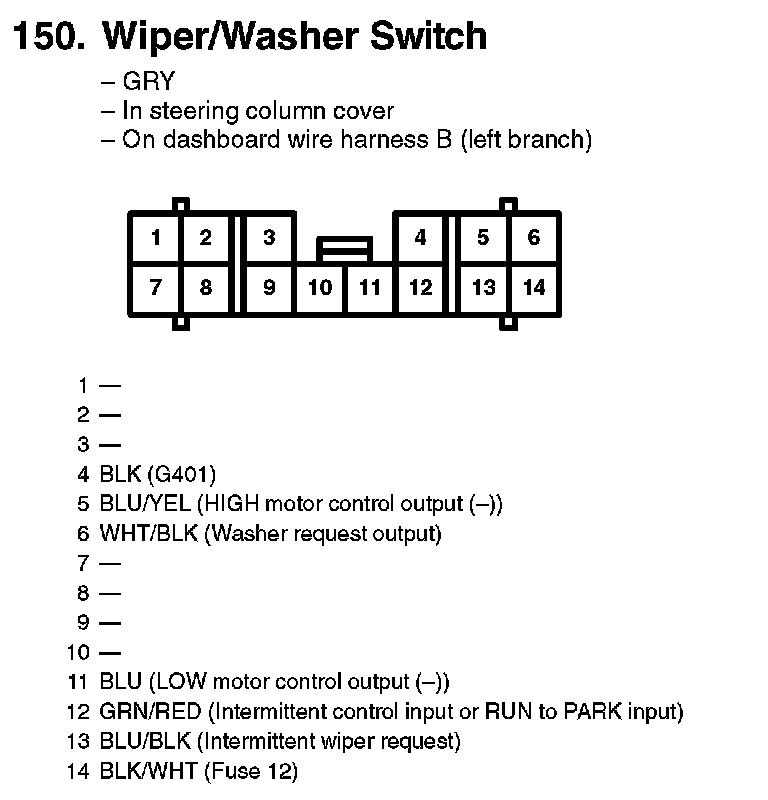

150. Wiper/Washer Switch:
