Rear Wire Harness (Left branch)

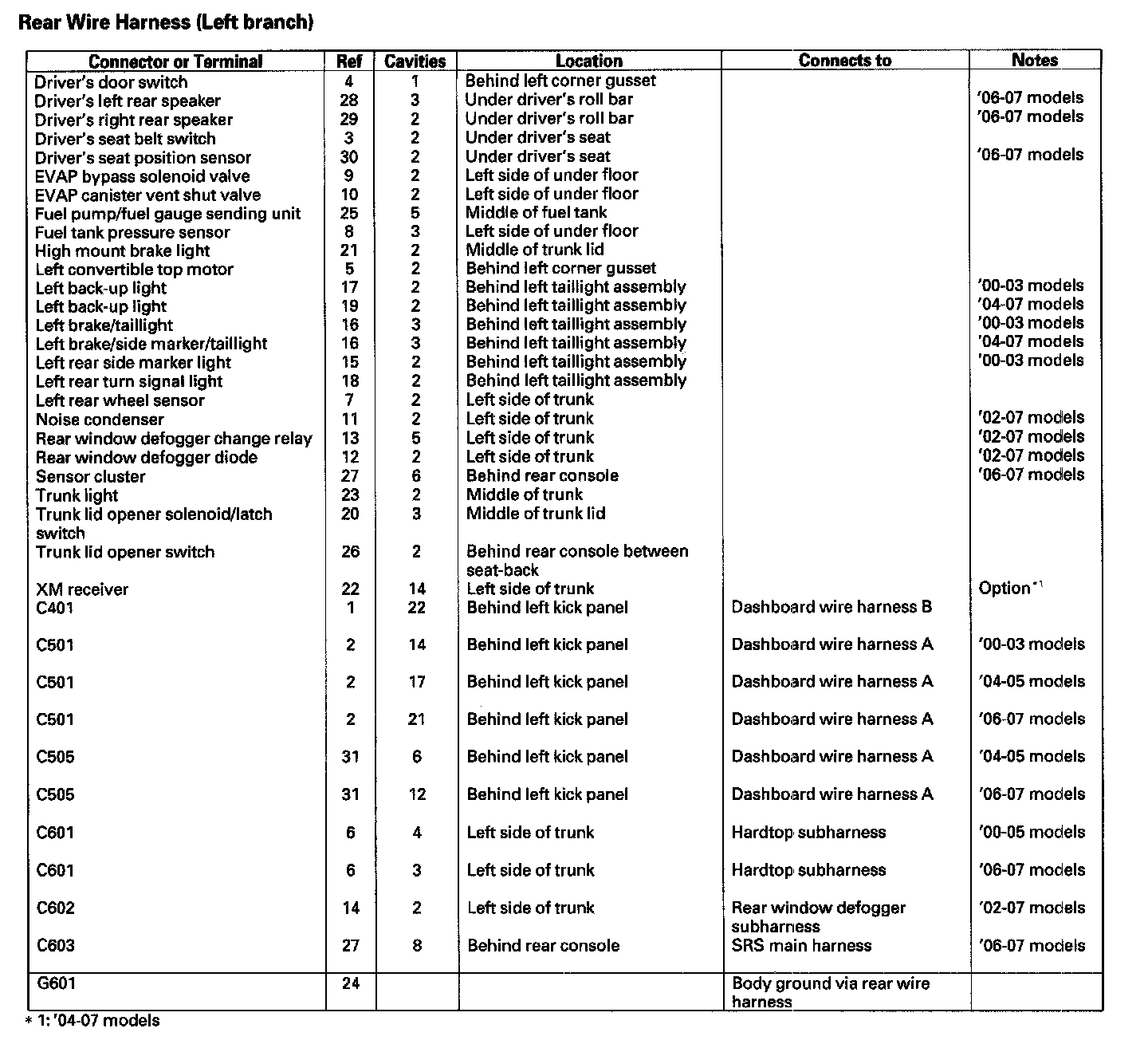

Rear Wire Harness (Left Branch):

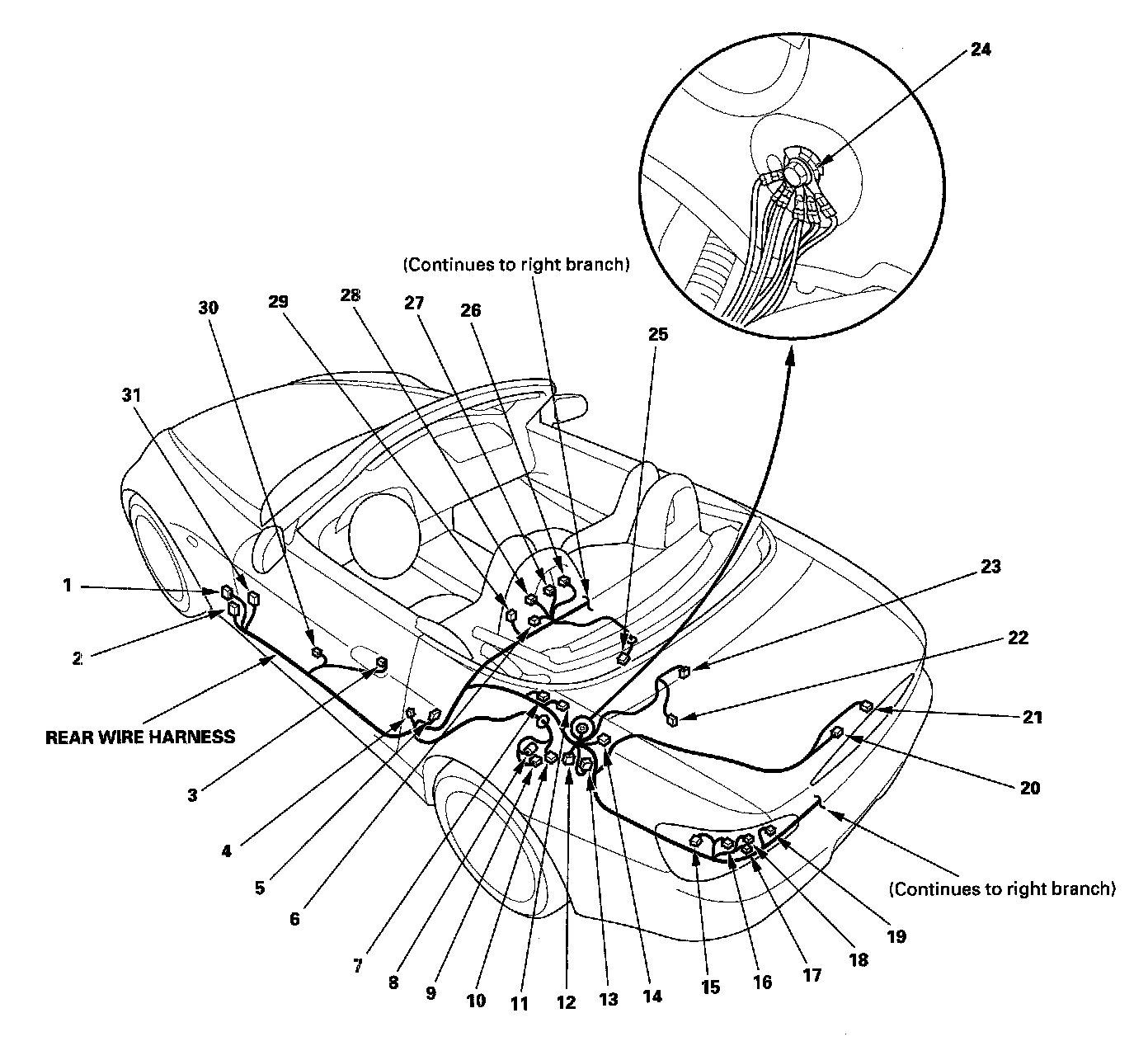

Harness Location View:

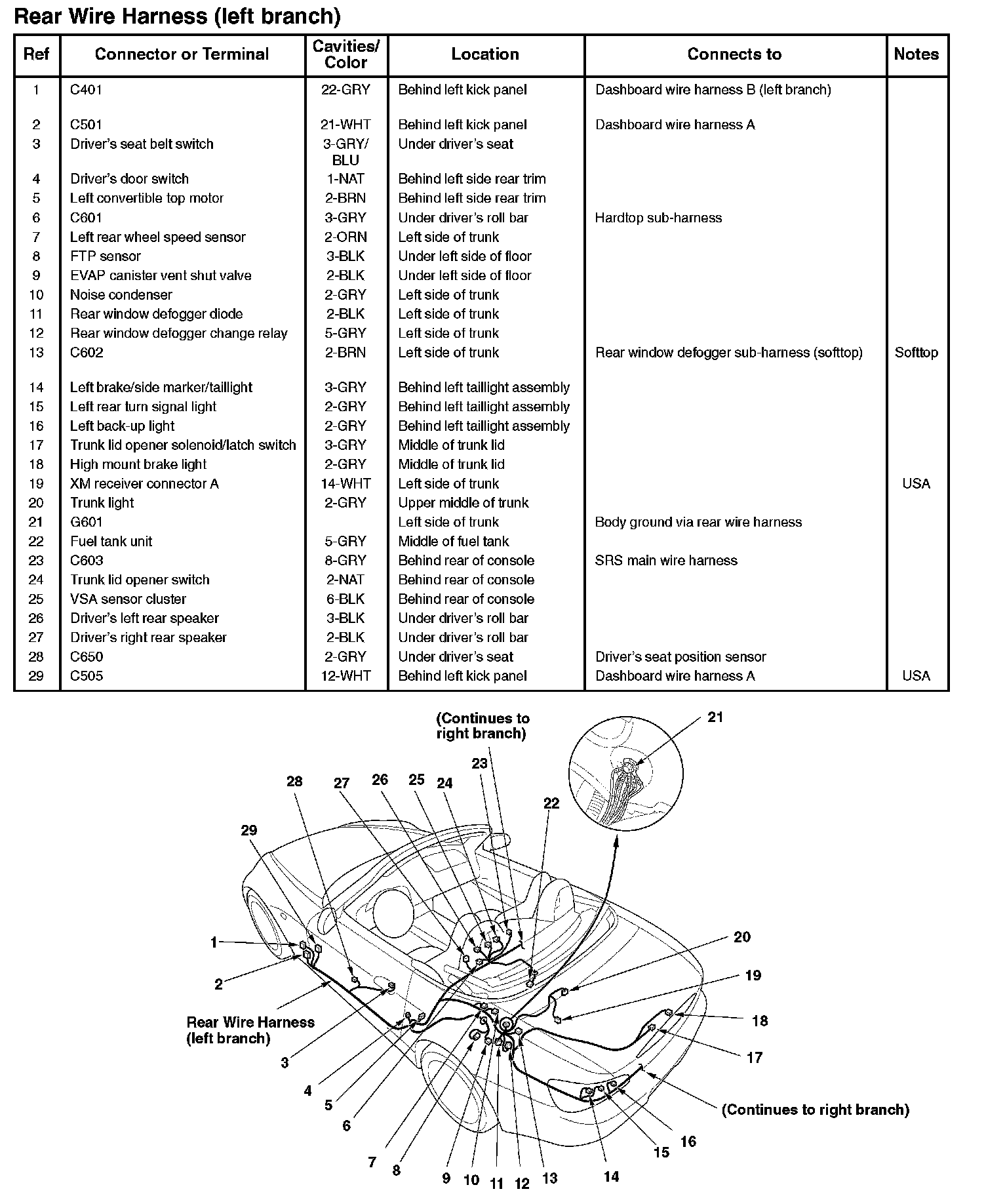

Rear Wire Harness (Left Branch):
