Roof Wire Harness
Roof Wire Harness

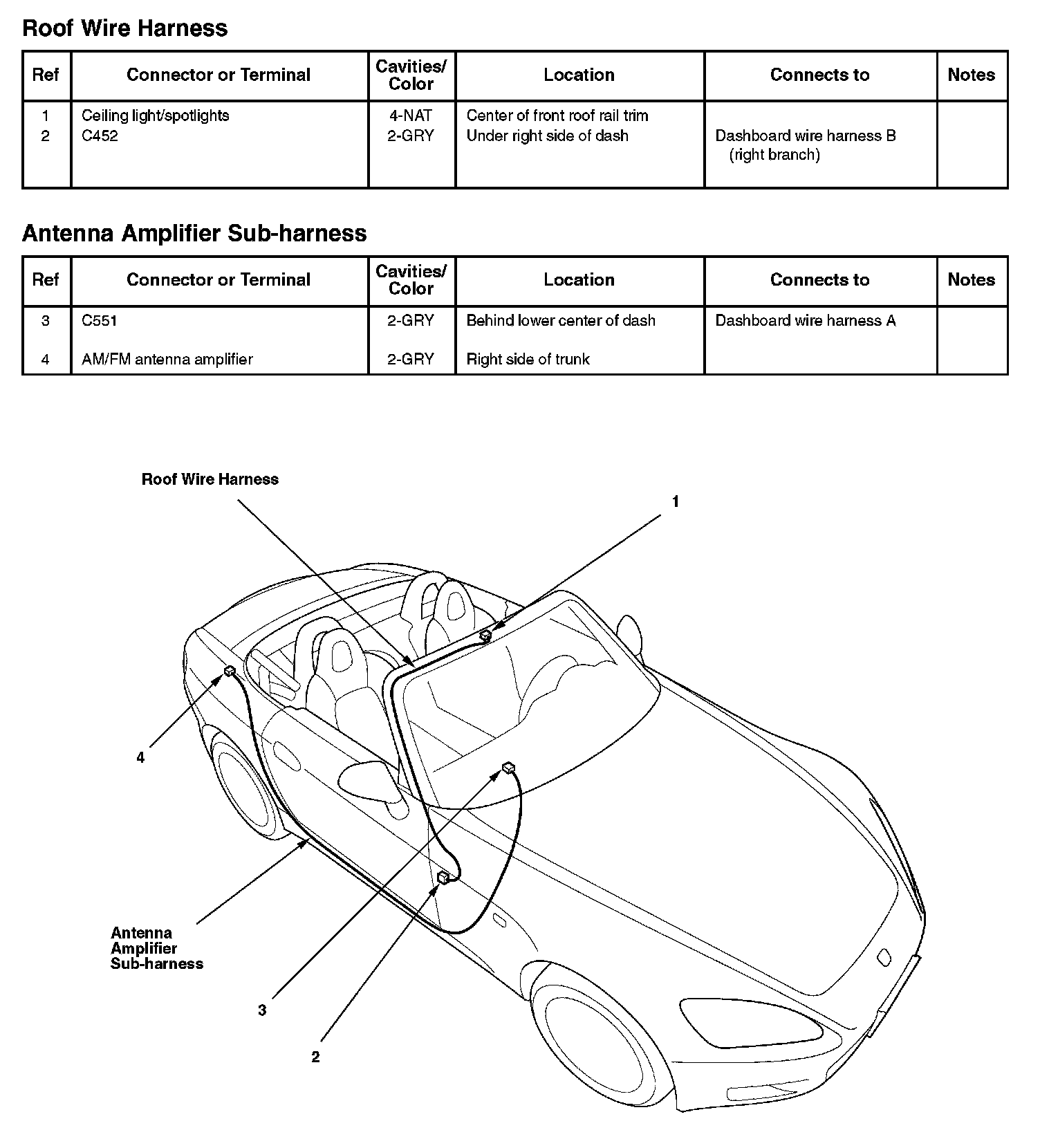

Roof Wire Harness/Antenna Amplifier Sub-harness:
Rear Wire Harness (Right Branch) / Roof Wire Harness / Antenna Amplifier Subharness:
