Condenser HVAC: Service and Repair
A/C Condenser Replacement1. Recover the refrigerant with a recovery/recycling/charging station.
2. Remove the air cleaner housing.
3. Remove the bolts, then remove the upper mount brackets from the radiator.

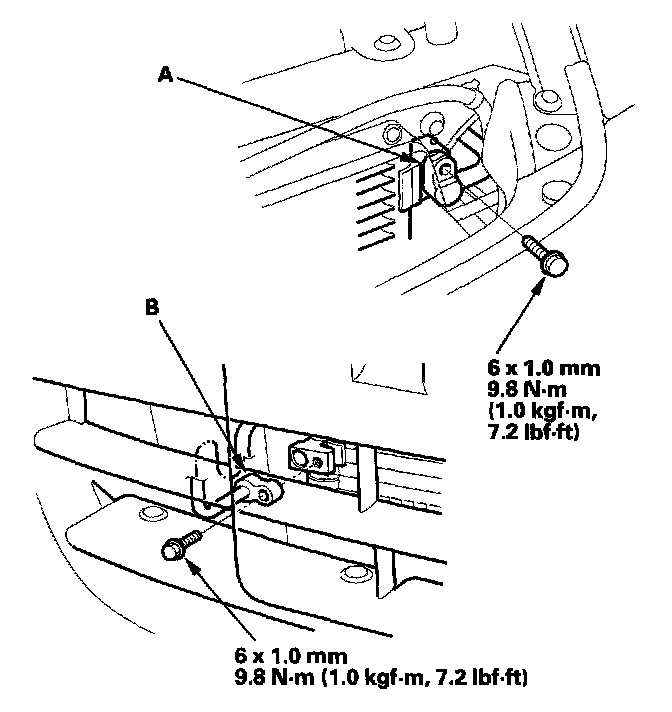

4. Remove the bolts, then disconnect the discharge line (A) and the A/C condenser line (B) from the A/C condenser. Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.

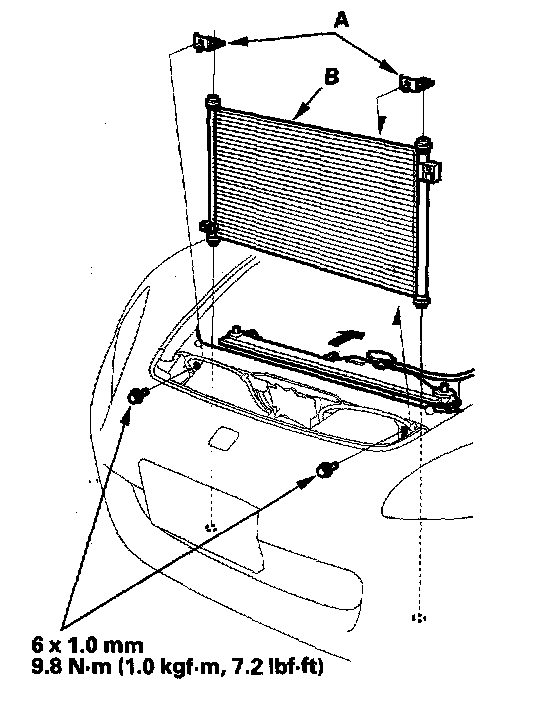

5. Remove the bolts and the upper mount brackets (A), then remove the A/C condenser (B) by lifting it up. Be careful not to damage the radiator or the A/C condenser fins when removing the A/C condenser.
6. Install the A/C condenser in the reverse order of removal, and note these items:
- If you're installing a new A/C condenser, add refrigerant oil (KEIHIN SP-10).
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
- Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
- Do not spill the refrigerant oil on the vehicle; it may damage the paint. If the refrigerant oil contacts the paint, wash it off immediately.
- Be careful not to damage the radiator or the A/C condenser fins when installing the A/C condenser.
- Charge the system.
