Refrigerant Oil: Service and Repair
A/C Refrigerant Oil ReplacementRecommended PAG oil: KEIHIN SP-10:
- P/N 38897-P13-A01AH: 120 ml (4fl.oz)
- P/N 38899-P13-A01: 40 ml (1 1/3 fl-oz)

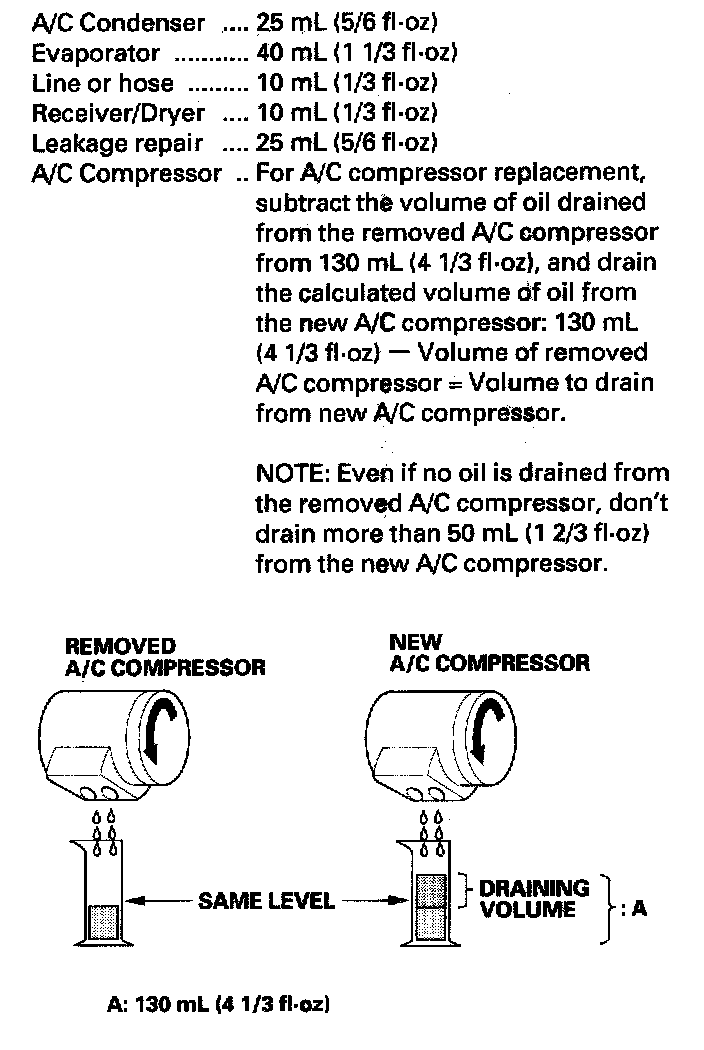

Add the recommended refrigerant oil in the amount listed if you replace any of the following parts.
- To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other refrigerant oils.
- Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
- Do not spill the refrigerant oil on the vehicle; it may damage the paint. If the refrigerant oil contacts the paint, wash it off immediately.
