Air Bag Deactivation Indicator: Testing and Inspection

Passenger's Airbag Cutoff Indicator Illumination Bulb Test

('06-07 Models)

1. Remove the dashboard radio panel.




2. Push out the passenger's airbag cutoff indicator from behind the radio panel.

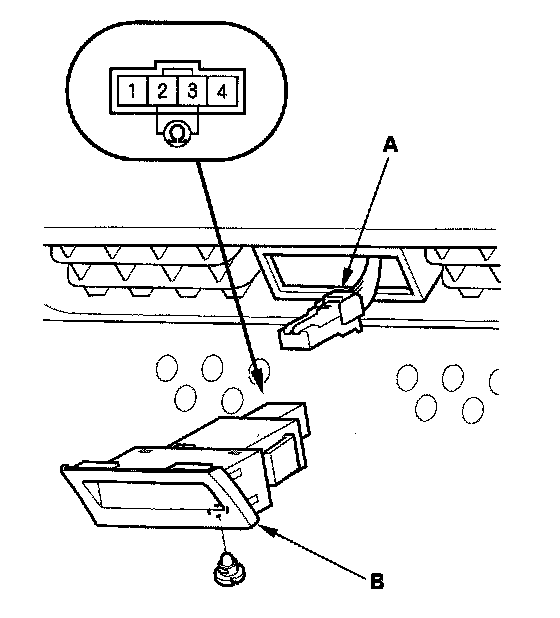

3. Disconnect the 4P connector (A) from the passenger's airbag cutoff indicator (B).
4. Check for continuity between the No. 2 and No. 3 terminals of the indicator. If there is no continuity, replace the bulb.
5. Install the parts in the reverse order of removal.
