Ignition System: Locations
Ignition System - Component Location Index:
Relay And Control Unit Locations Dashboard And Door:

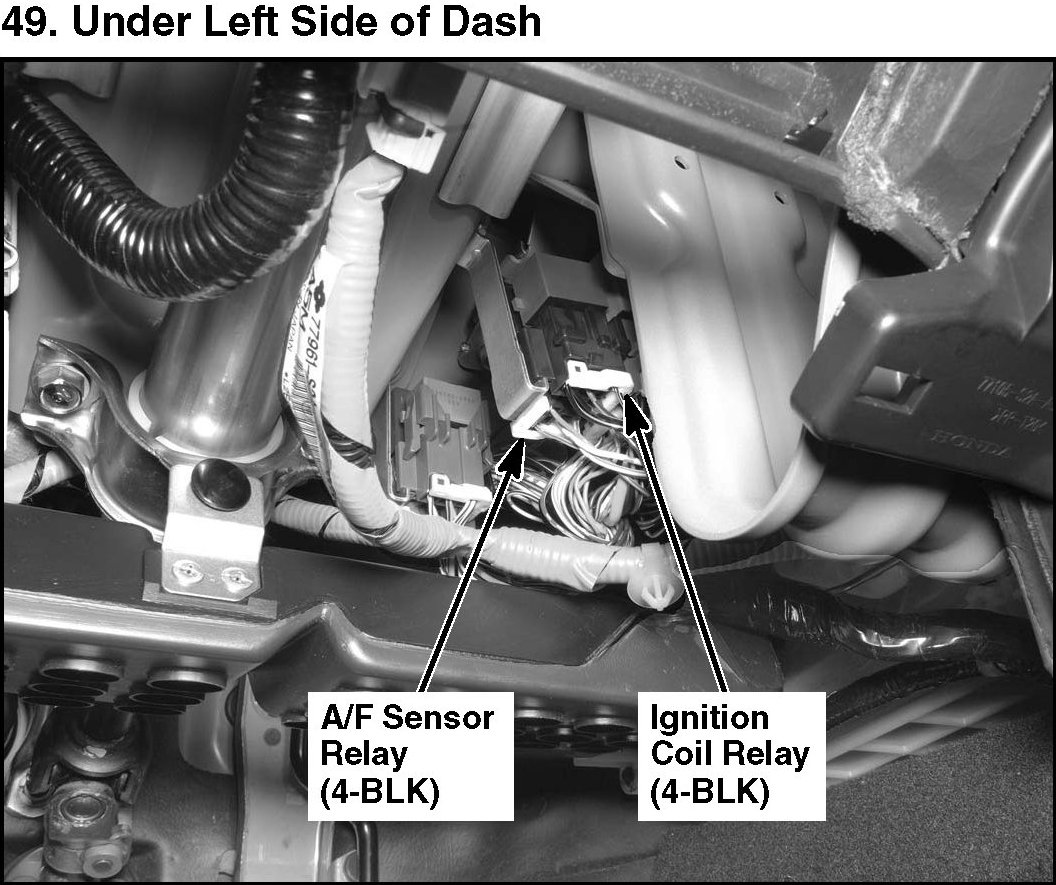

49. Under Left Side Of Dash:
