Brake Pedal Stroke Sensor Replacement

Brake Pedal Stroke Sensor Replacement

1. Remove the brake pedal.

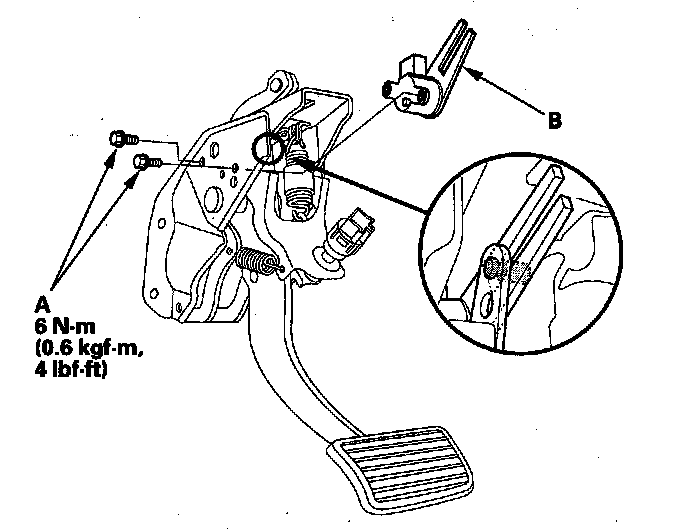

2. Remove the bolts (A), and remove the brake pedal stroke sensor (B).





3. Install the brake pedal stroke sensor in the reverse order of removal.
4. Do the sensor 0 (zero) position memorization. Memorizing 0 (Zero) Position
