Air Door Actuator / Motor, HVAC

174. Air Mix Control Motor:

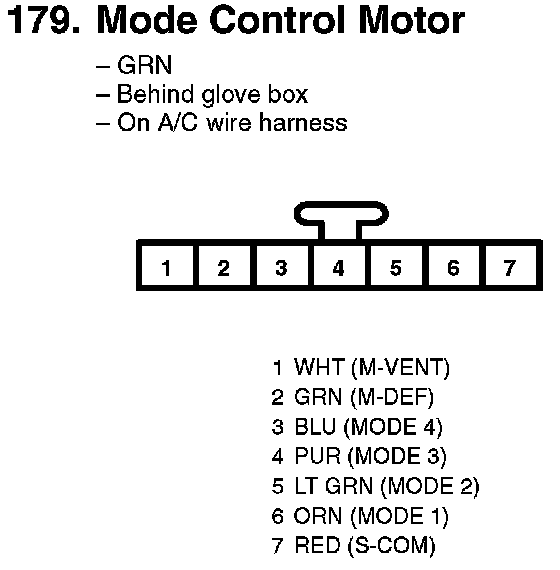

179. Mode Control Motor:

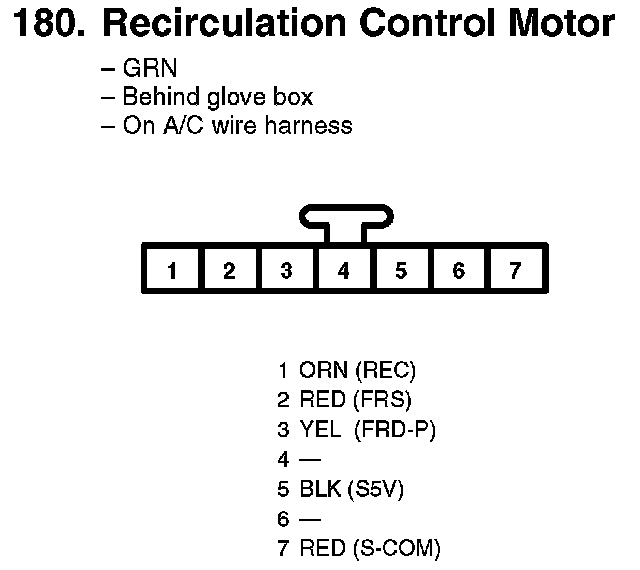

180. Recirculation Control Motor:
