Auxiliary Power Outlet
Auxiliary Power Outlet

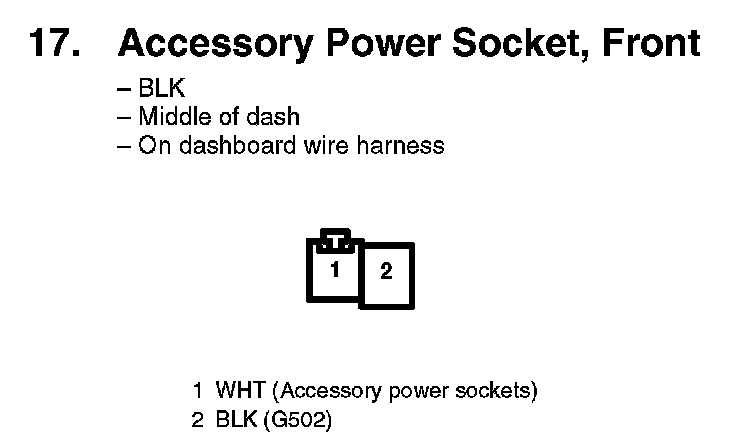

17. Accessory Power Socket, Front:

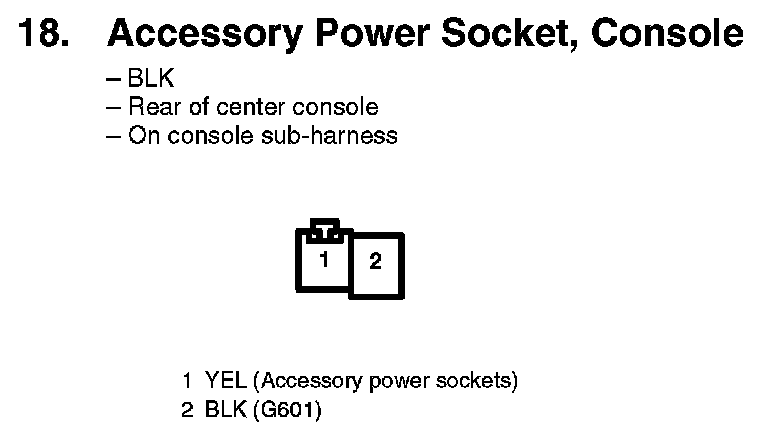

18. Accessory Power Socket, Console:

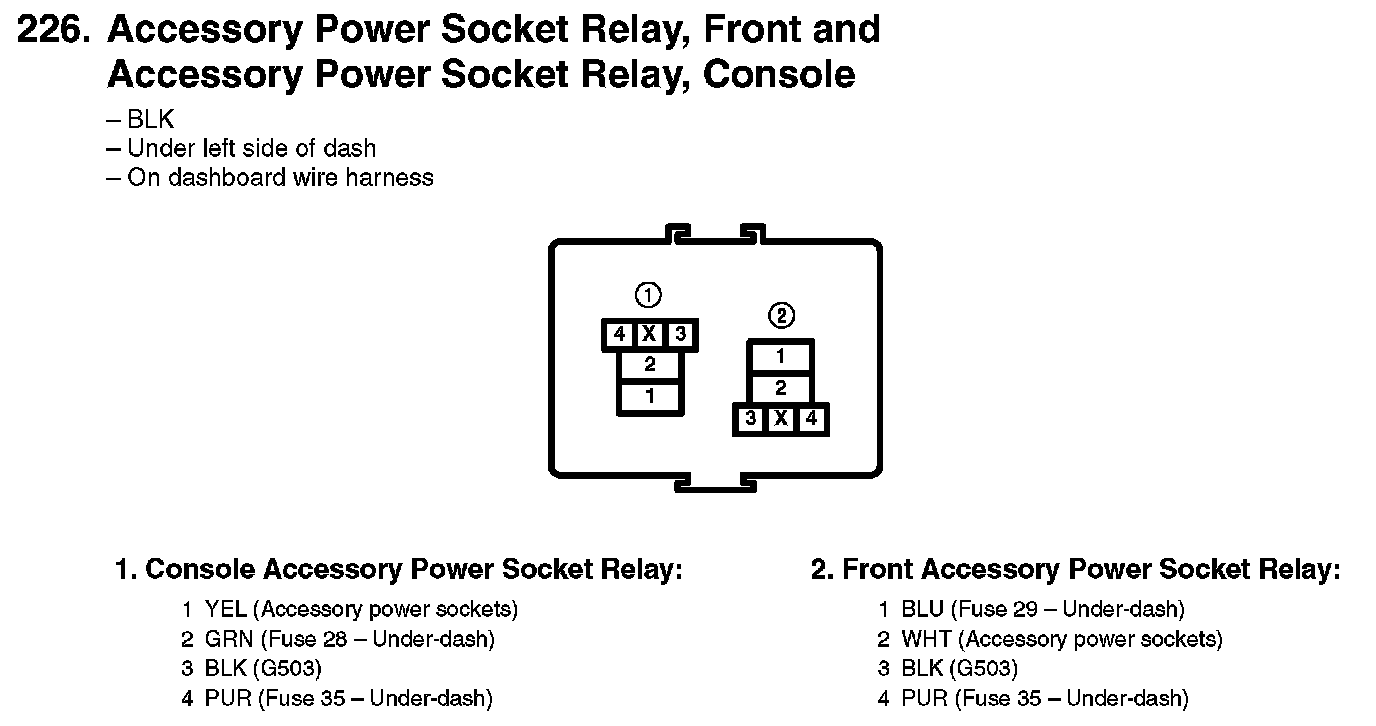

226. Accessory Power Socket Relay, Front And Accessory Power Socket Relay, Console:
