Battery Bus Junction Board, Hybrid Drive
Battery Bus Junction Board, Hybrid Drive

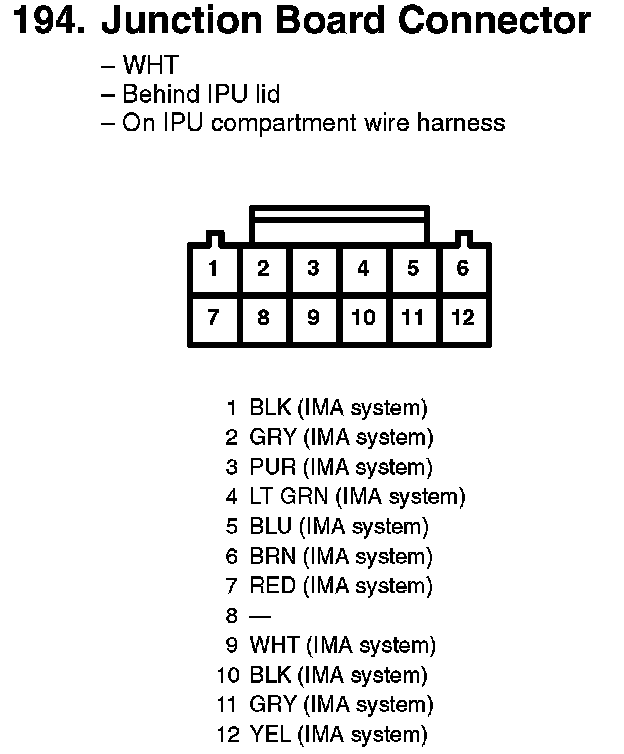

194. Junction Board Connector:
