Battery Temperature Sensor/Switch, Hybrid Drive
Battery Temperature Sensor/Switch, Hybrid Drive

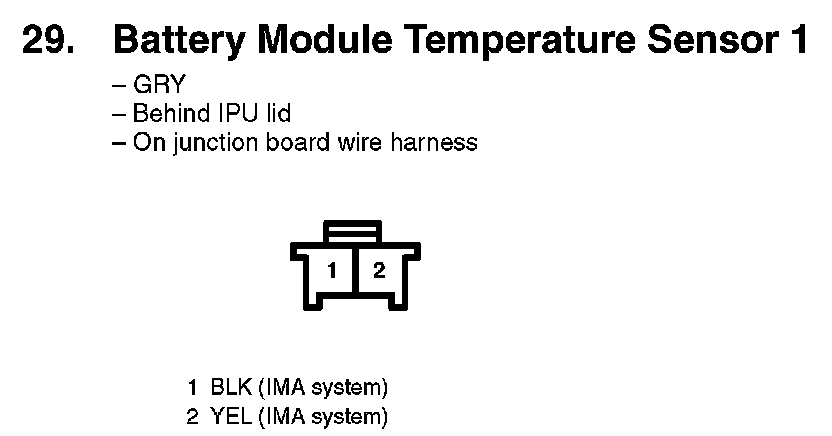

29. Battery Module Temperature Sensor 1:

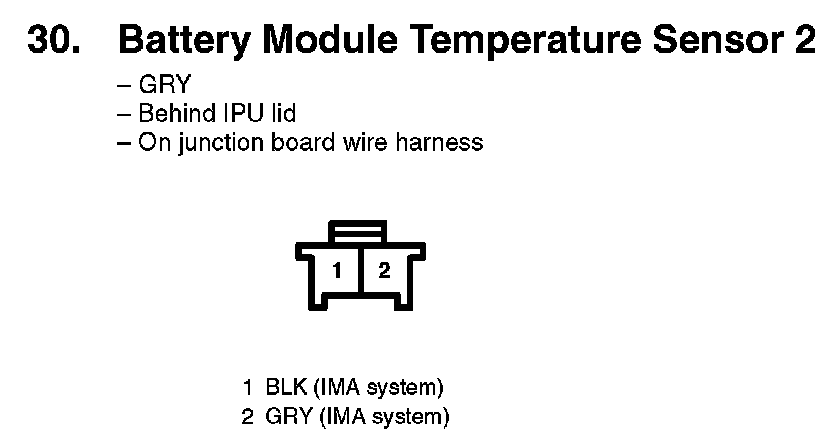

30. Battery Module Temperature Sensor 2:

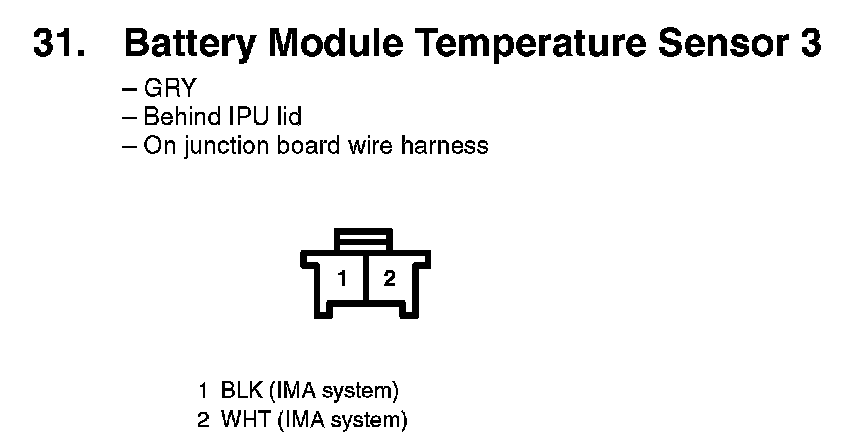

31. Battery Module Temperature Sensor 3:
