Braking Sensor/Switch
Braking Sensor/Switch

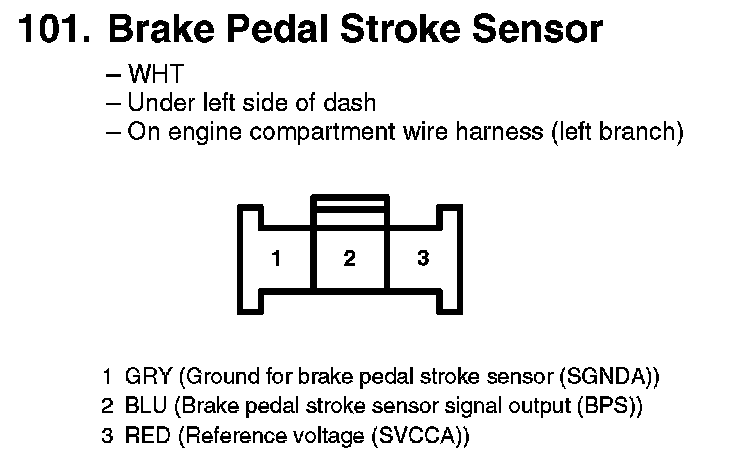

101. Brake Pedal Stroke Sensor:
135. Brake Pedal Position Switch:
