Home >> Honda >> 2008 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Noise Suppressor

Electronic Noise Suppressor

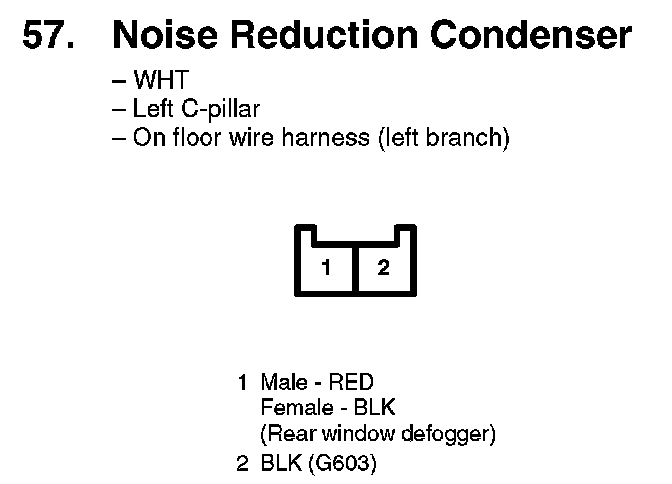

57. Noise Reduction Condenser:
