Impact Sensor

51. Impact Sensor, Left Front:

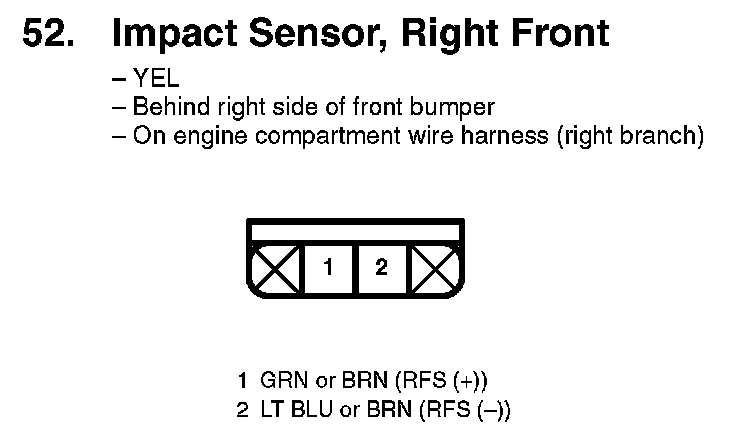

52. Impact Sensor, Right Front:



70. Side Impact Sensor (2nd), Left:

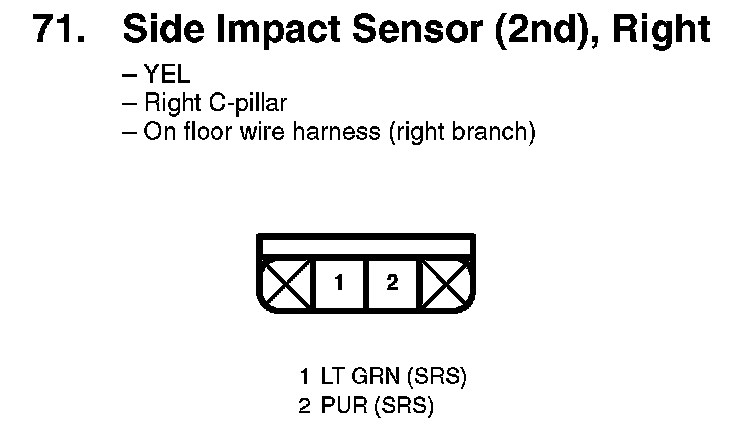

71. Side Impact Sensor (2nd), Right:

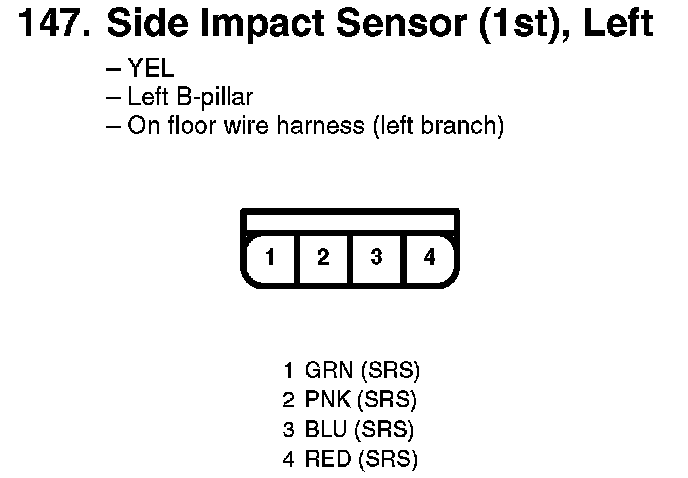

147. Side Impact Sensor (1st), Left:

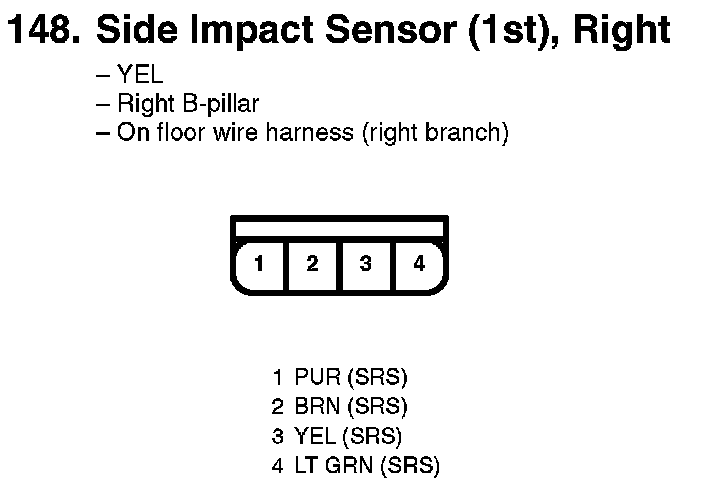

148. Side Impact Sensor (1st), Right:
