Marker Lamp
Marker Lamp

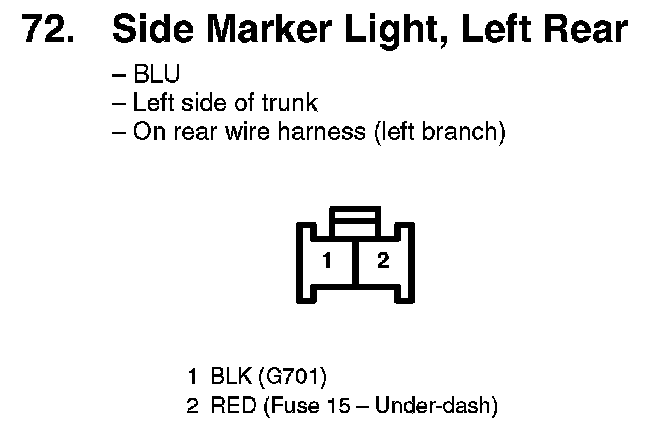

72. Side Marker Light, Left Rear:

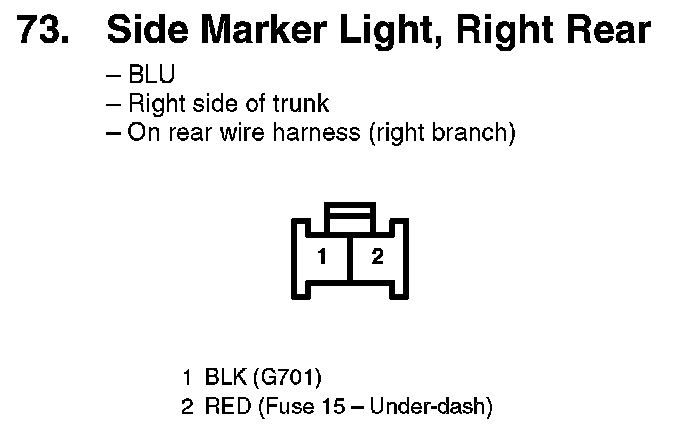

73. Side Marker Light, Right Rear:
117. Side Marker/Parking/Turn Signal Lights, Left Front:
118. Side Marker/Parking/Turn Signal Lights, Right Front:
