Multiple Junction Connector

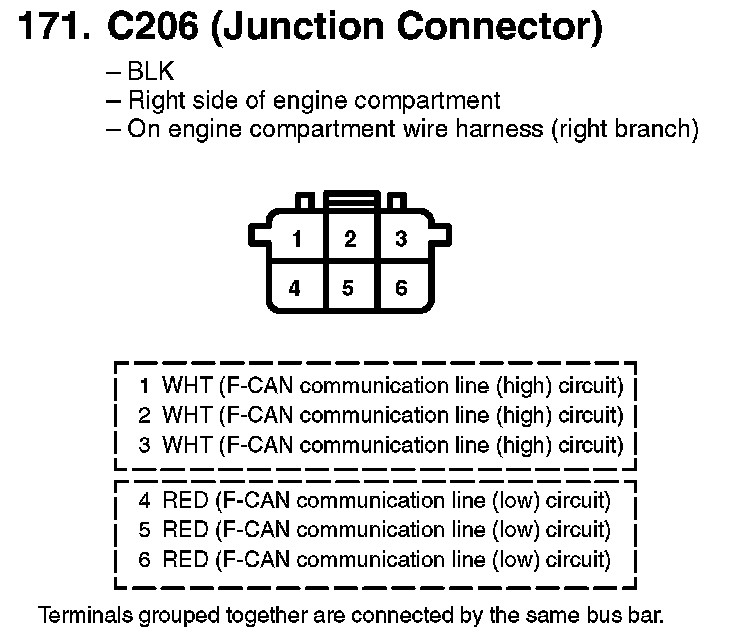

171. C206 (Junction Connector):

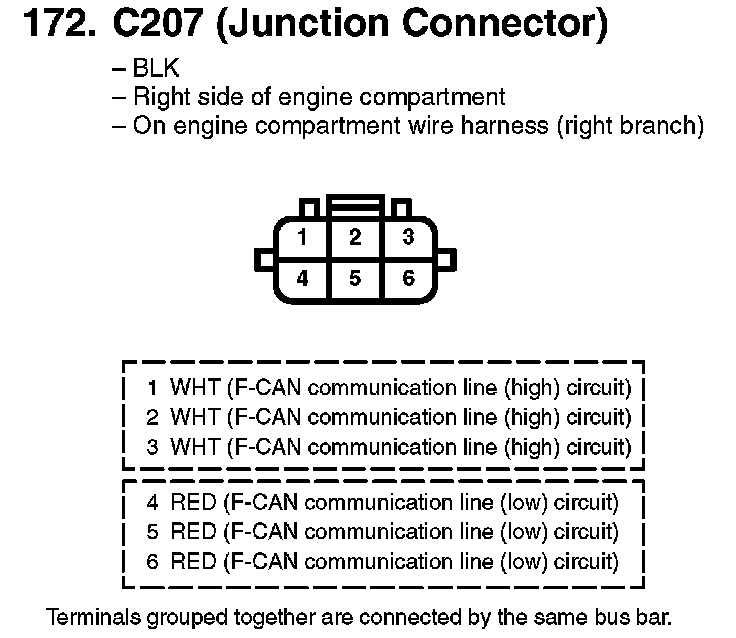

172. C207 (Junction Connector):



173. C208 (Junction Connector):



195. C106 (Junction Connector):

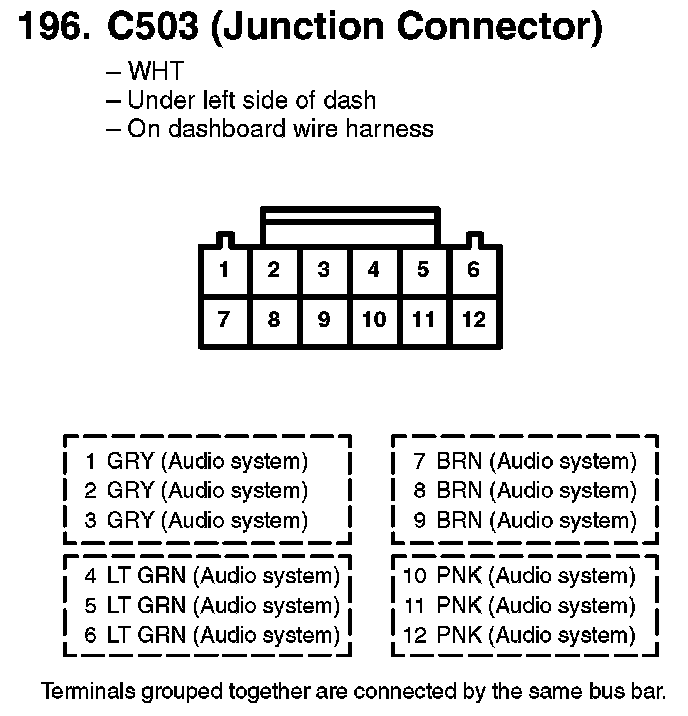

196. C503 (Junction Connector):



197. C753 (Junction Connector):



214. C902 (Junction Connector):



215. C903 (Junction Connector):

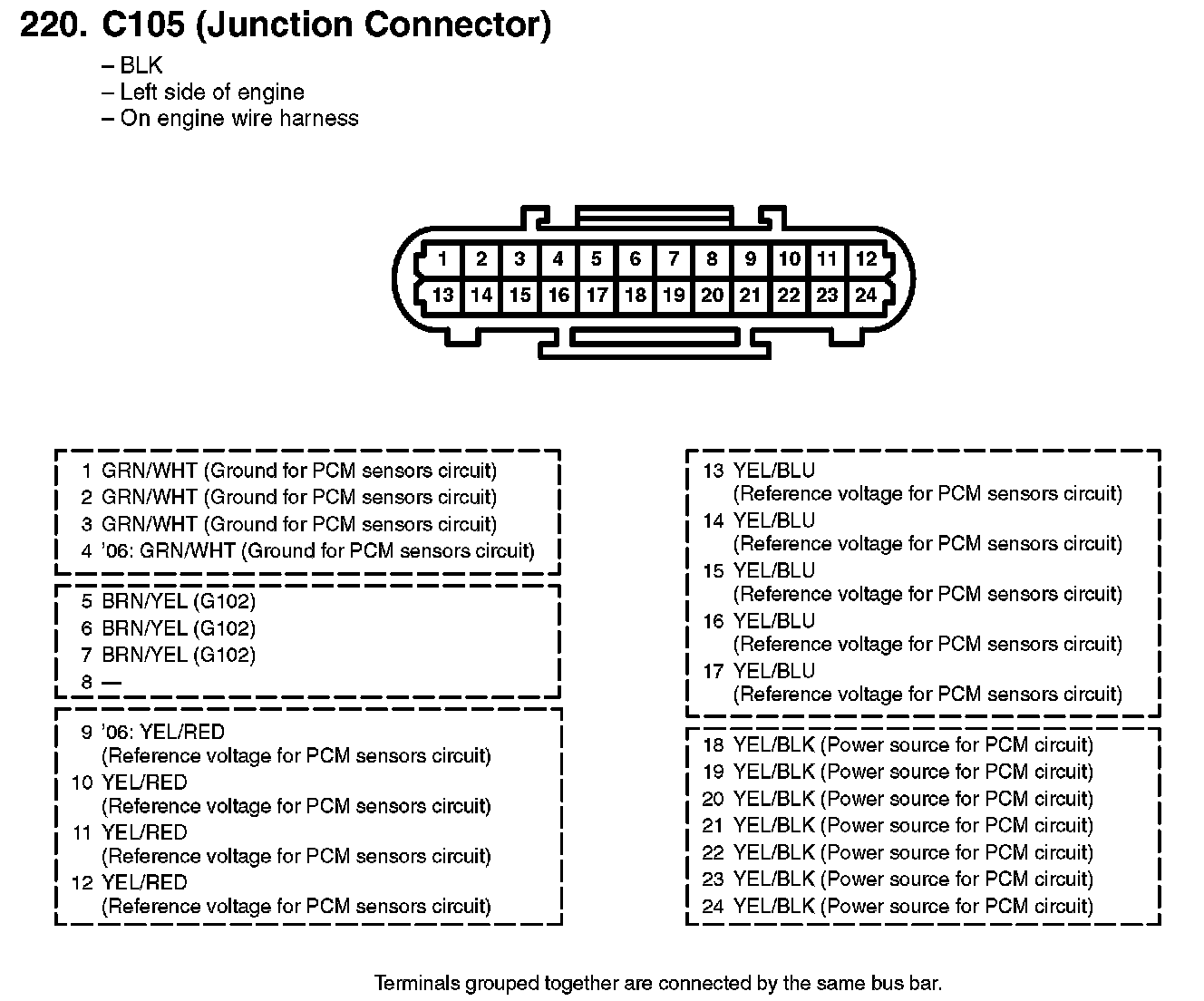

220. C105 (Junction Connector):

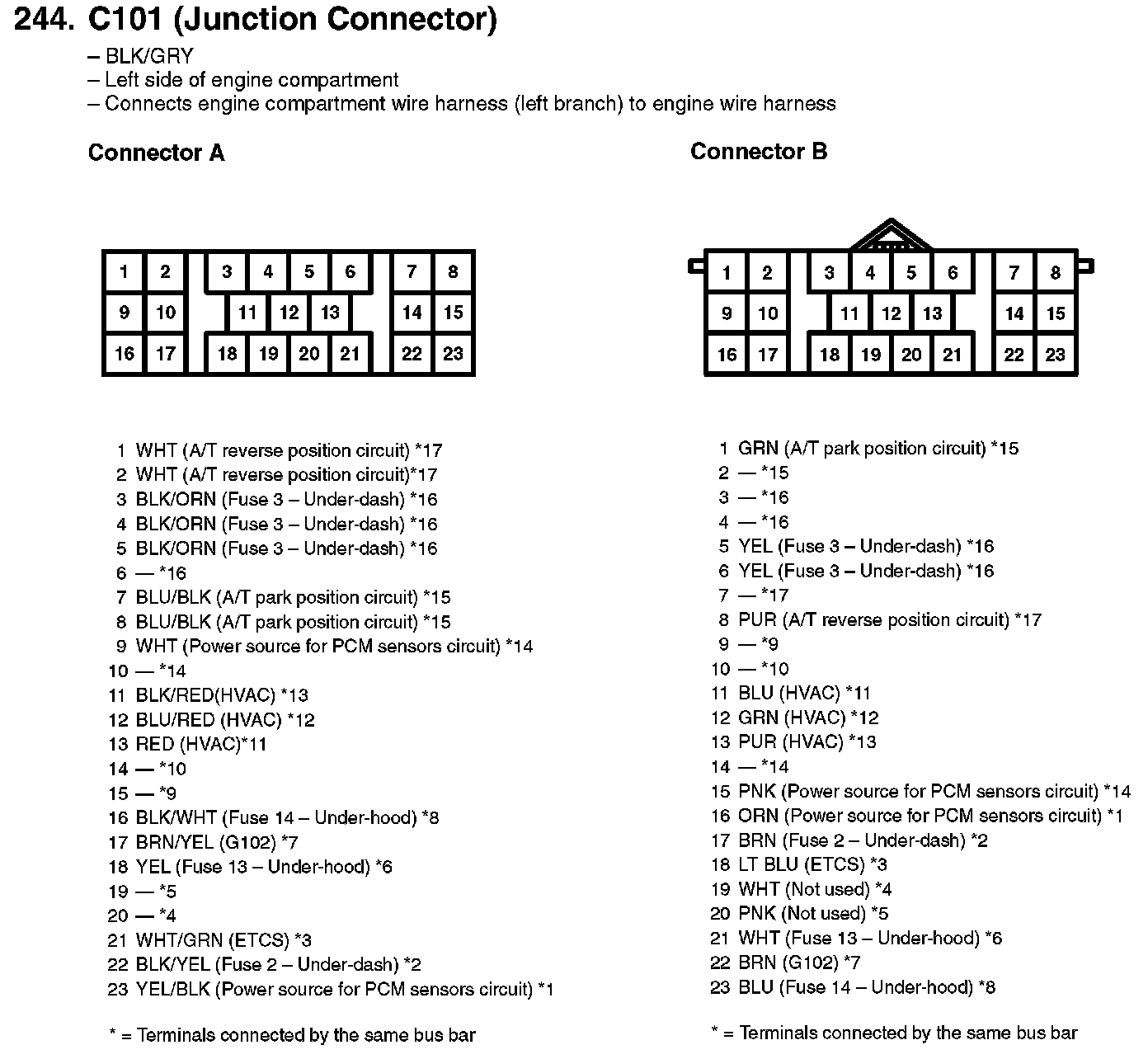

244. C101 (Junction Connector):
