Power Trunk / Liftgate Lock Switch
Power Trunk / Liftgate Lock Switch
120. Trunk Lid Opener Solenoid/Latch Switch (USA):

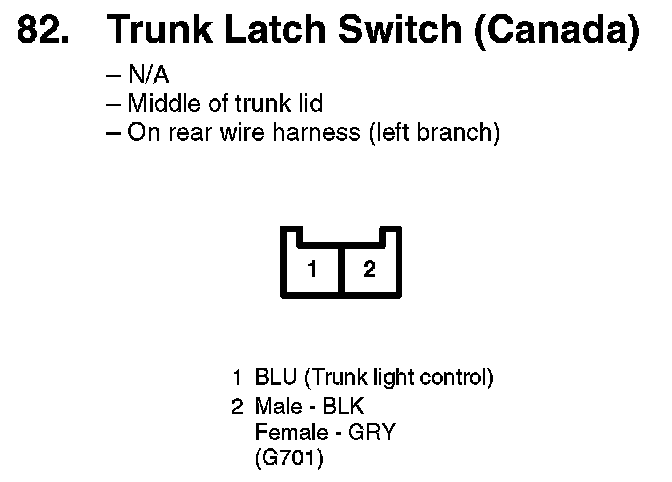

82. Trunk Latch Switch (Canada):

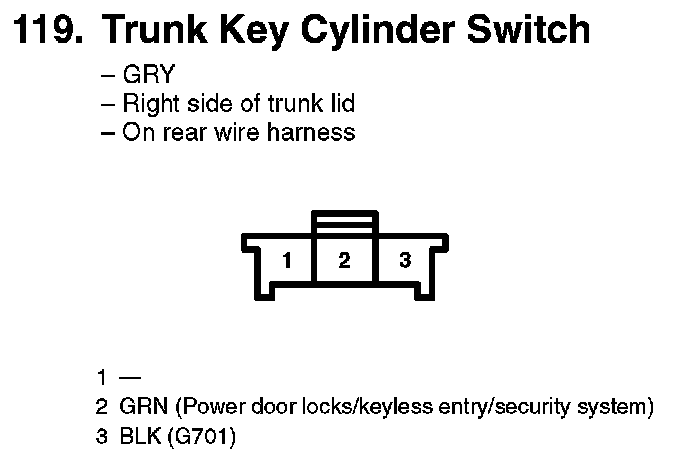

119. Trunk Key Cylinder Switch:
