Power Window Motor
Power Window Motor

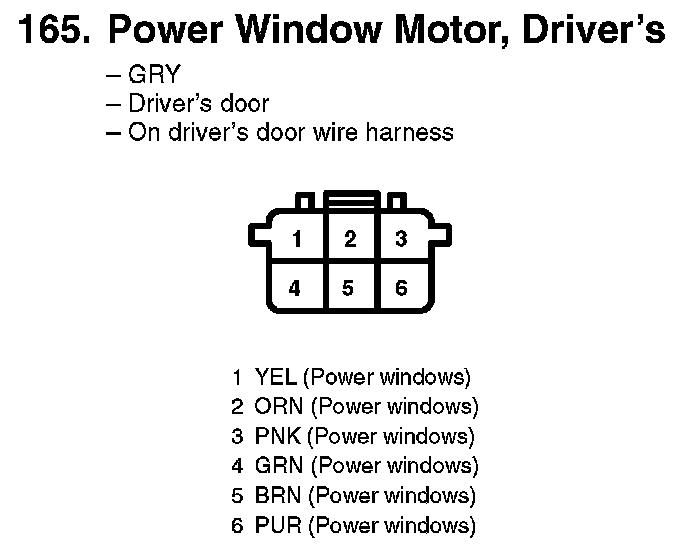

165. Power Window Motor, Driver's:
166. Power Window Motor, Front Passenger's:

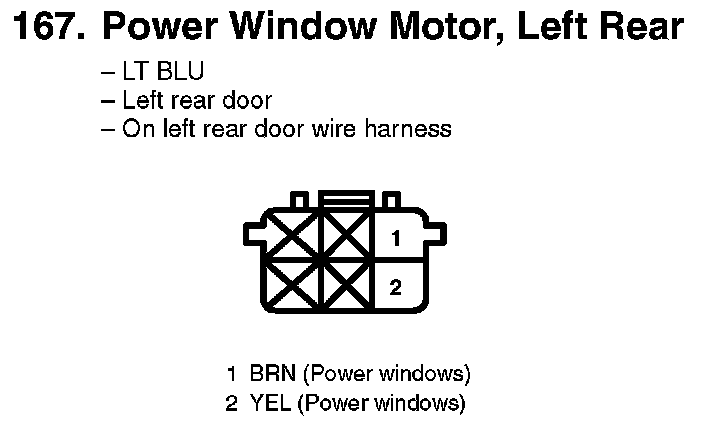

167. Power Window Motor, Left Rear:

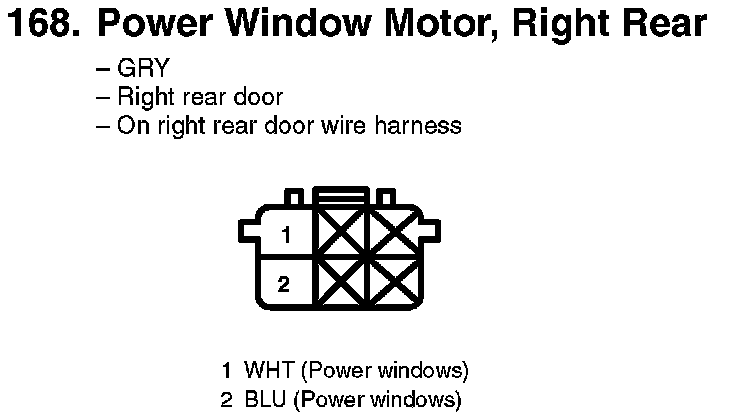

168. Power Window Motor, Right Rear:
