Civic L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
Power Window Switch

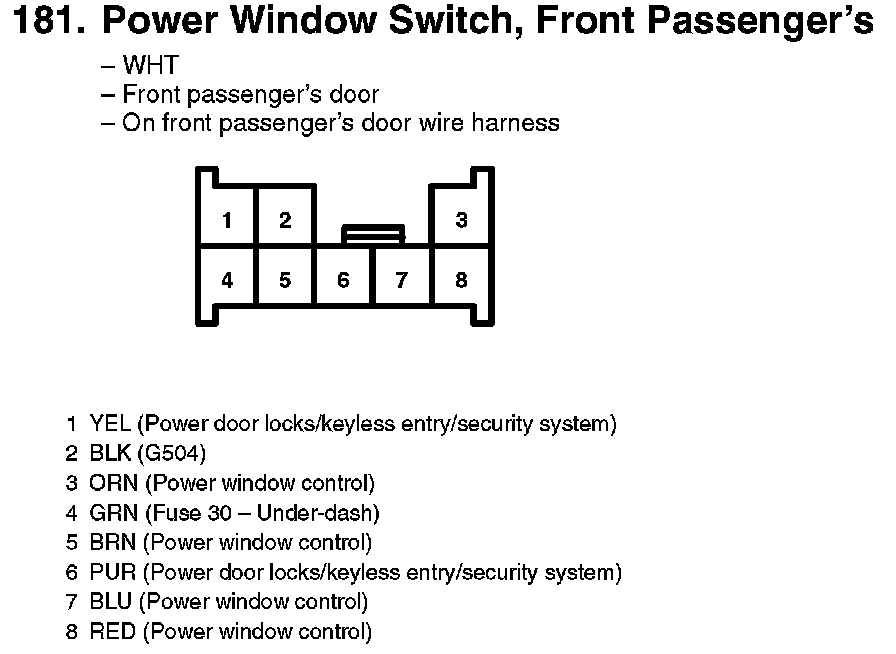

181. Power Window Switch, Front Passenger's:

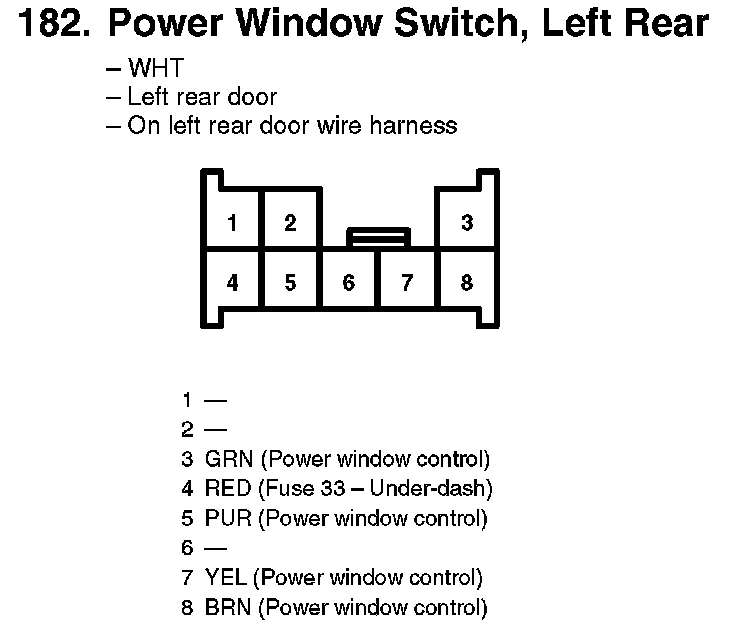

182. Power Window Switch, Left Rear:

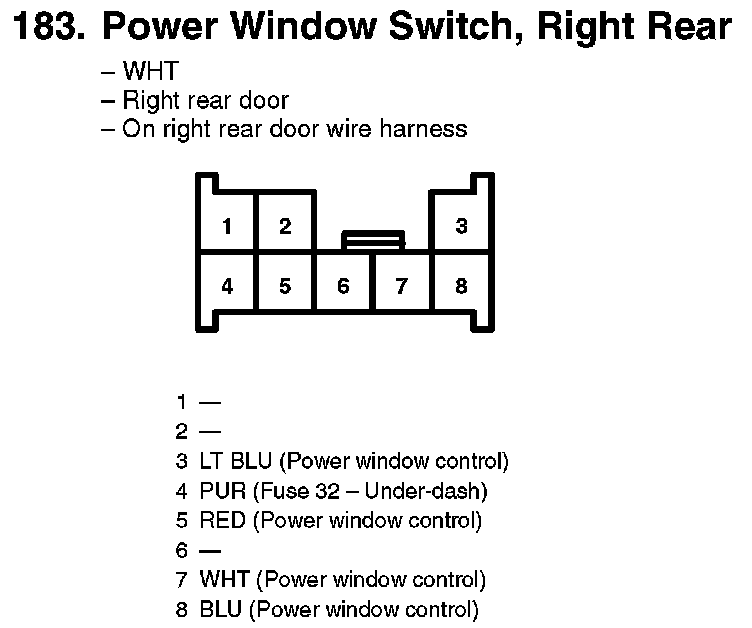

183. Power Window Switch, Right Rear:

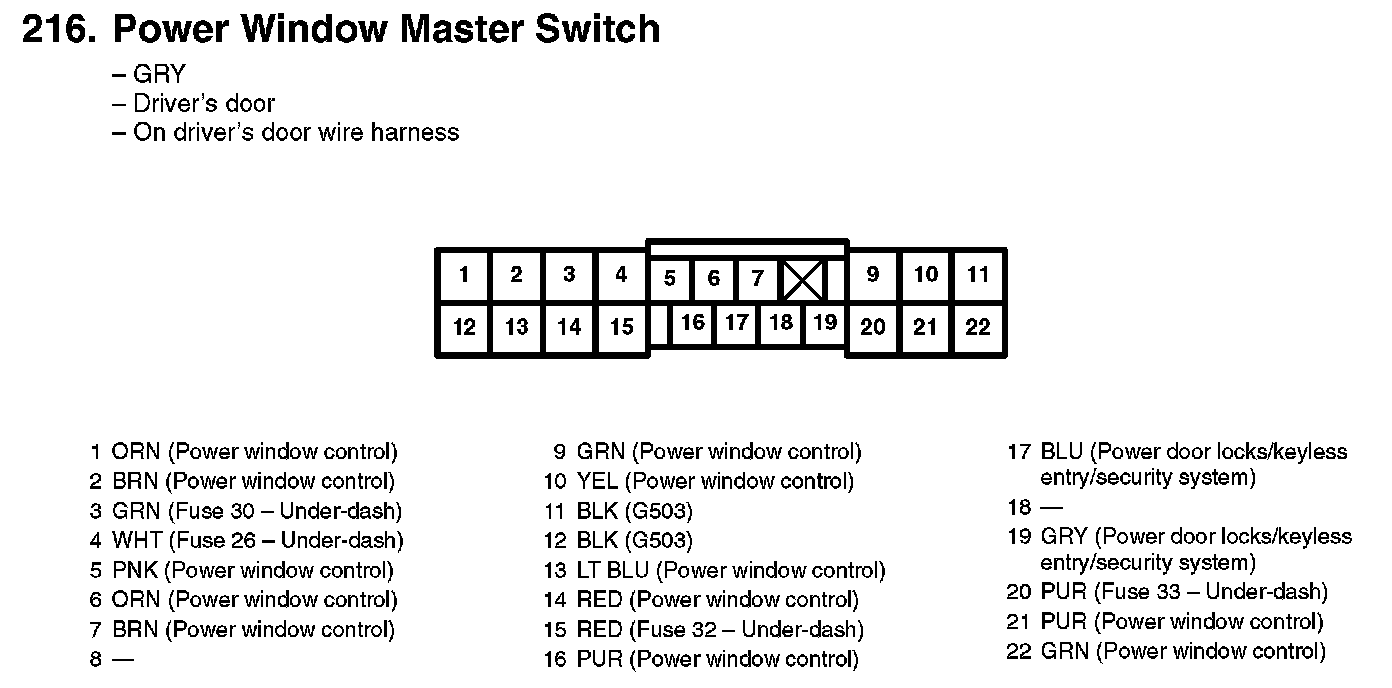

216. Power Window Master Switch:
