Pressure Regulating Solenoid, CVT

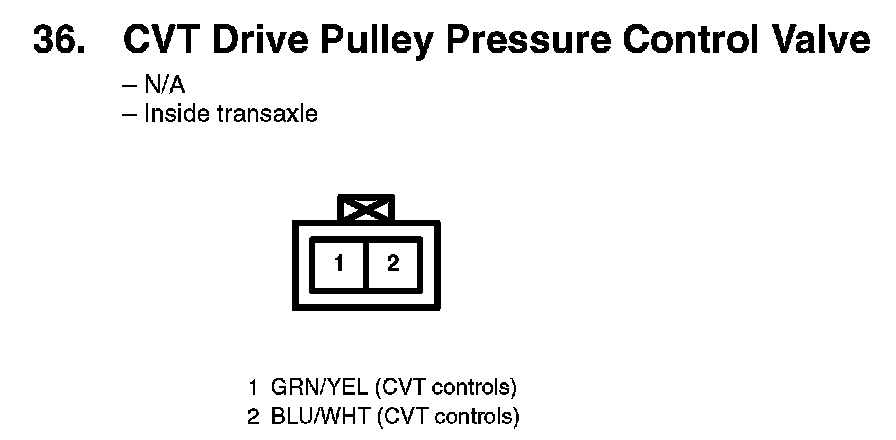

36. CVT Drive Pulley Pressure Control Valve:

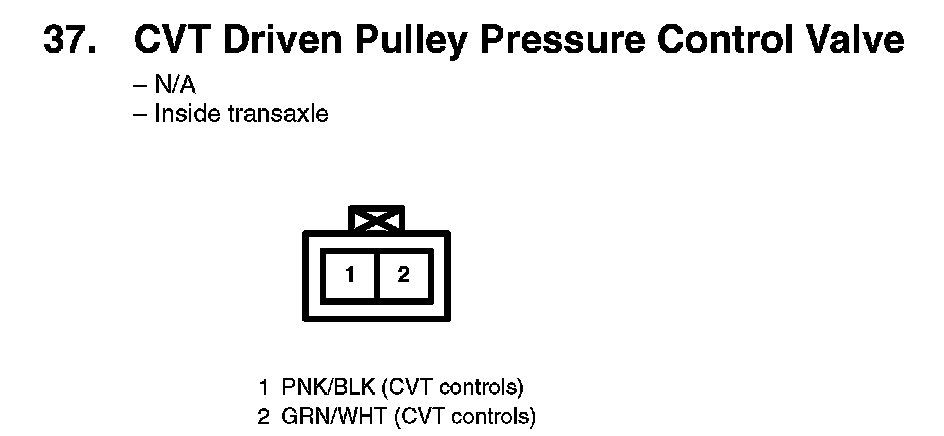

37. CVT Driven Pulley Pressure Control Valve:
