Seat Belt Tensioner
Seat Belt Tensioner

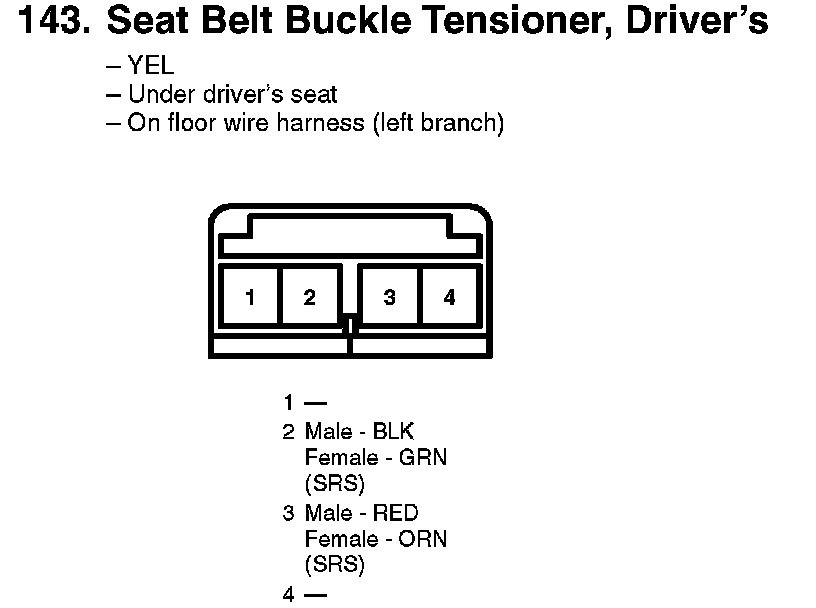

143. Seat Belt Buckle Tensioner, Driver's:

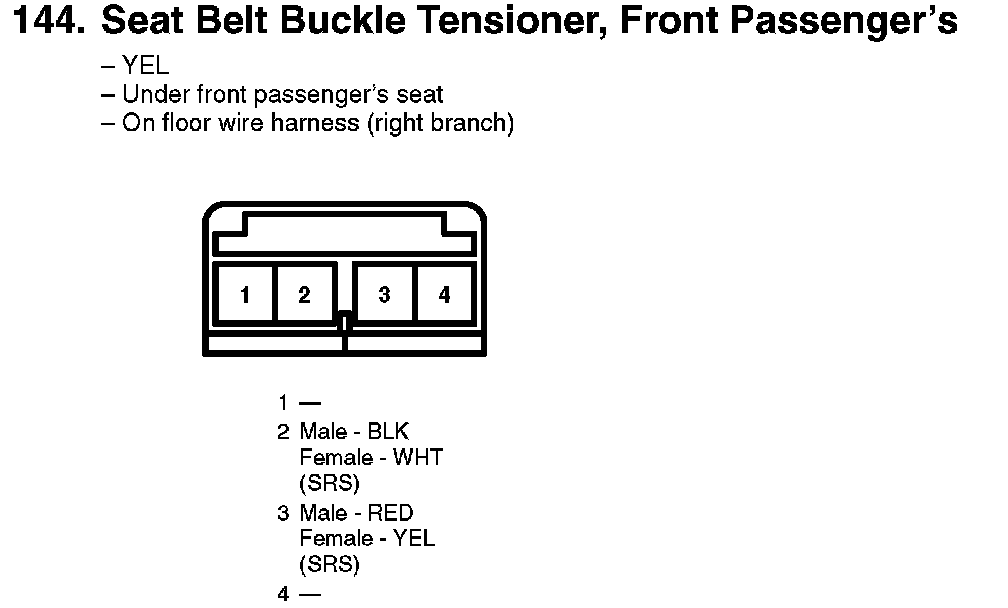

144. Seat Belt Buckle Tensioner, Front Passenger's:
145. Seat Belt Tensioner, Driver's:
146. Seat Belt Tensioner, Front Passenger's:
