Tail Lamp
Tail Lamp

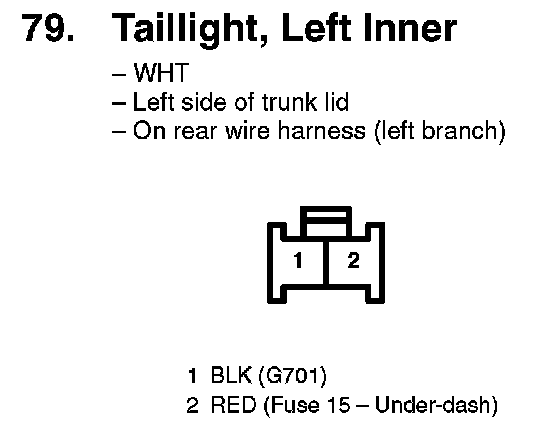

79. Taillight, Left Inner:

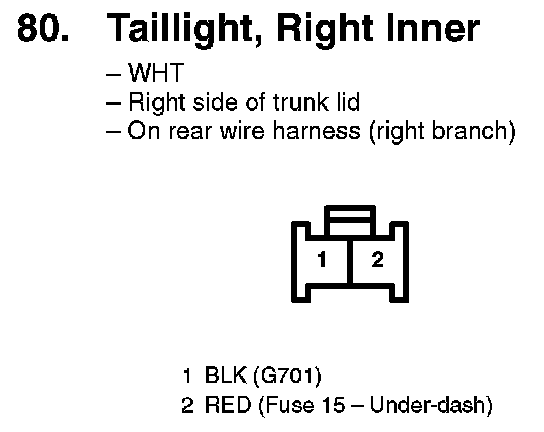

80. Taillight, Right Inner:

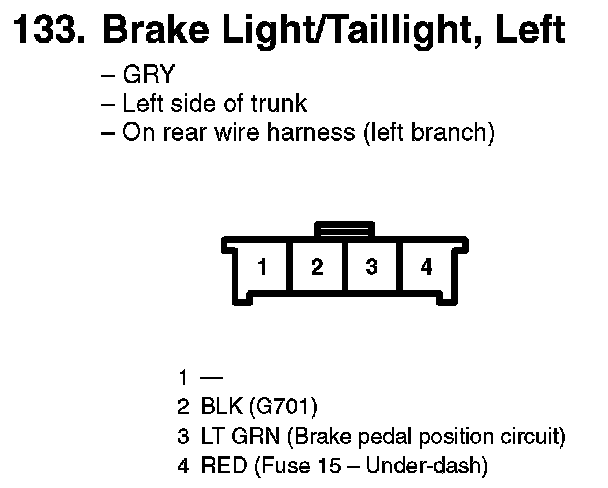

133. Brake Light/Taillight, Left:

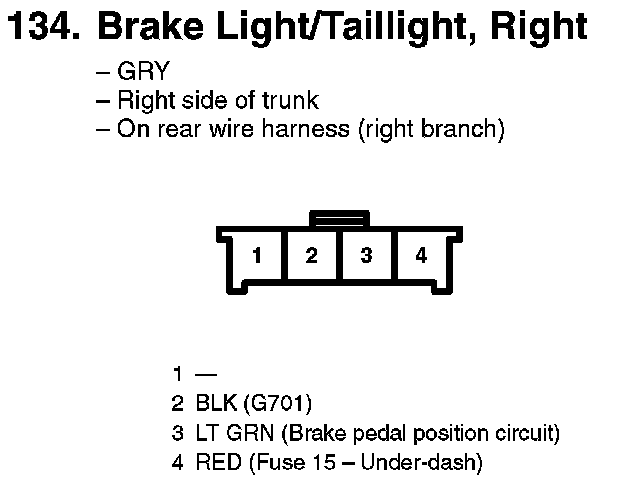

134. Brake Light/Taillight, Right:
