Variable Valve Timing Solenoid

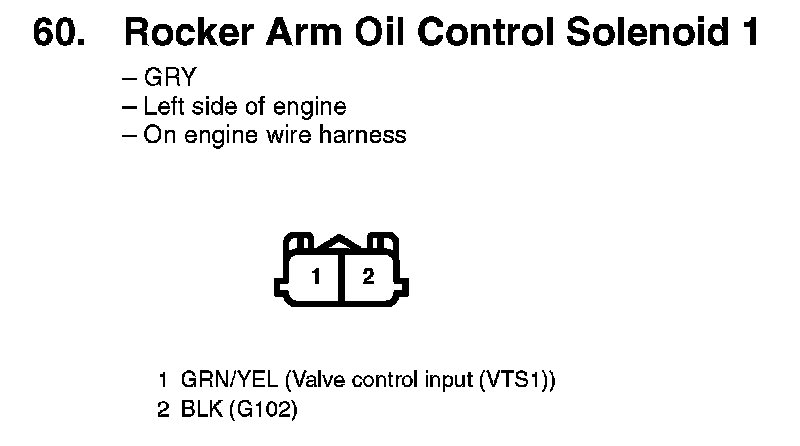

60. Rocker Arm Oil Control Solenoid 1:



61. Rocker Arm Oil Control Solenoid 2:
