Wheel Speed Sensor

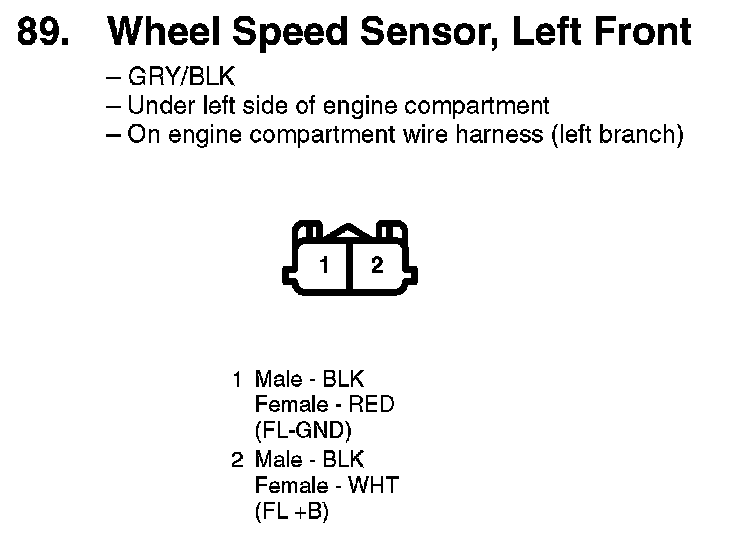

89. Wheel Speed Sensor, Left Front:

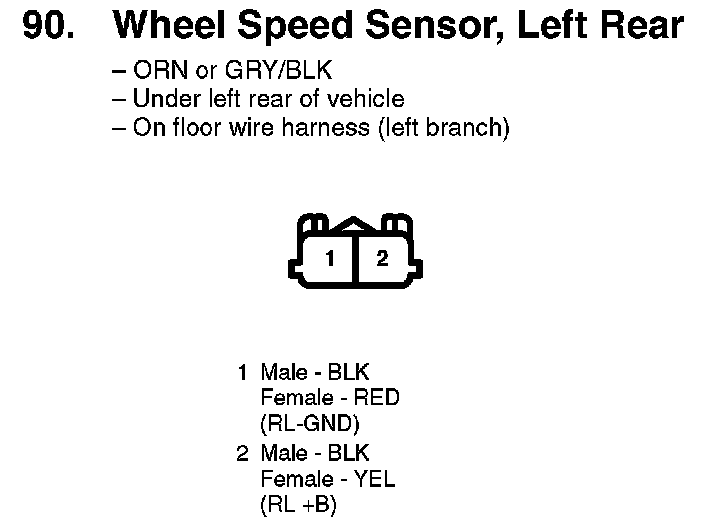

90. Wheel Speed Sensor, Left Rear:

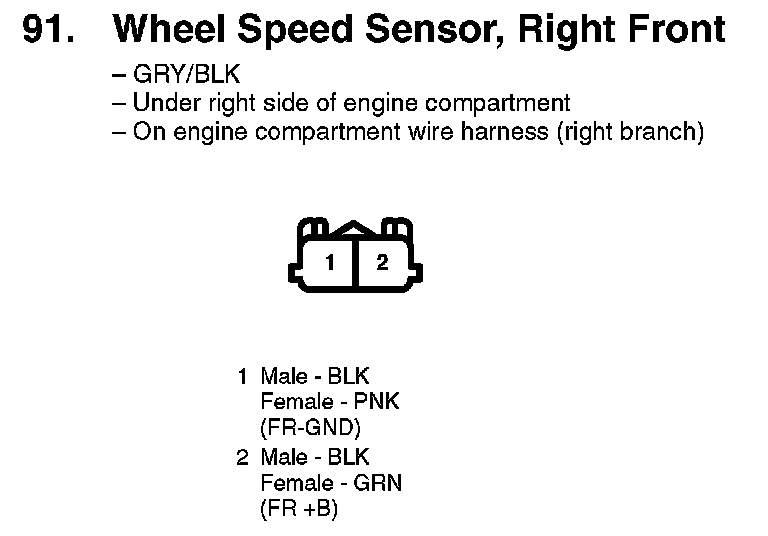

91. Wheel Speed Sensor, Right Front:

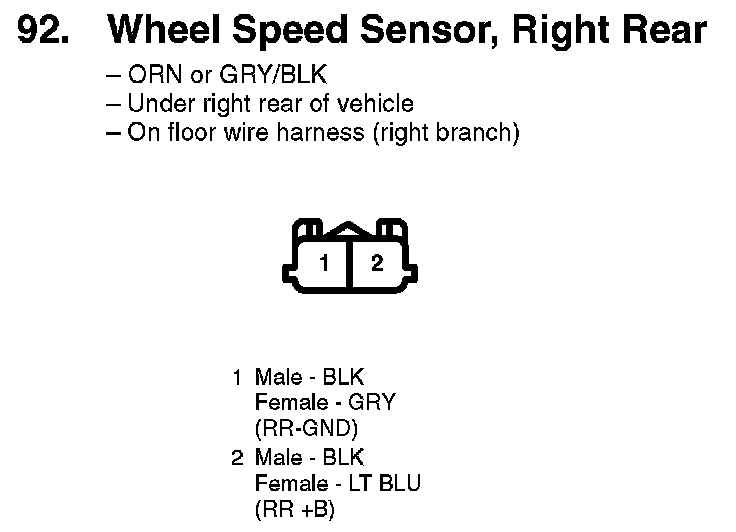

92. Wheel Speed Sensor, Right Rear:
