Tire Monitoring System
Circuit Diagram

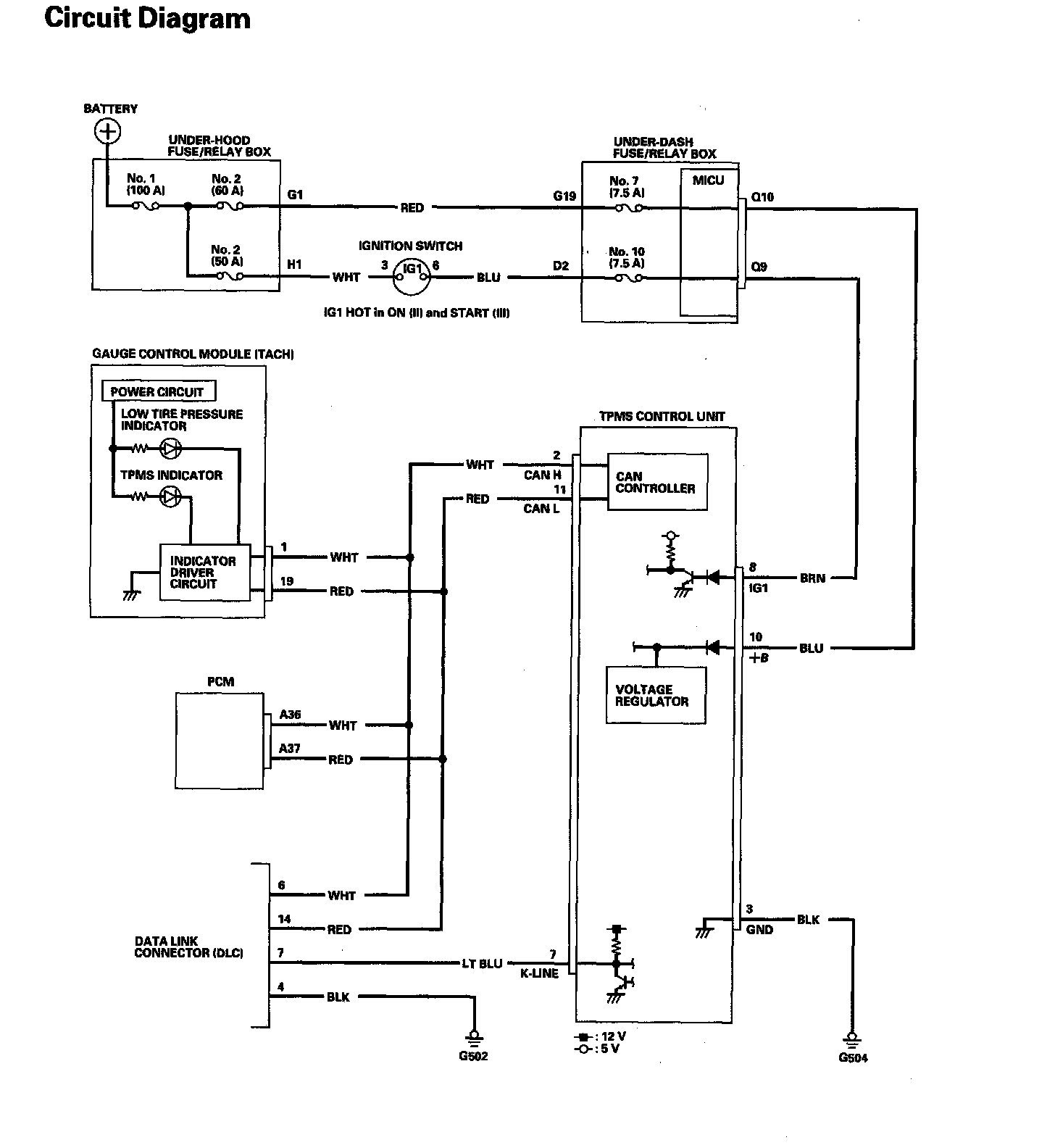

Tire Pressure Monitoring System Circuit Diagram (Part 1):

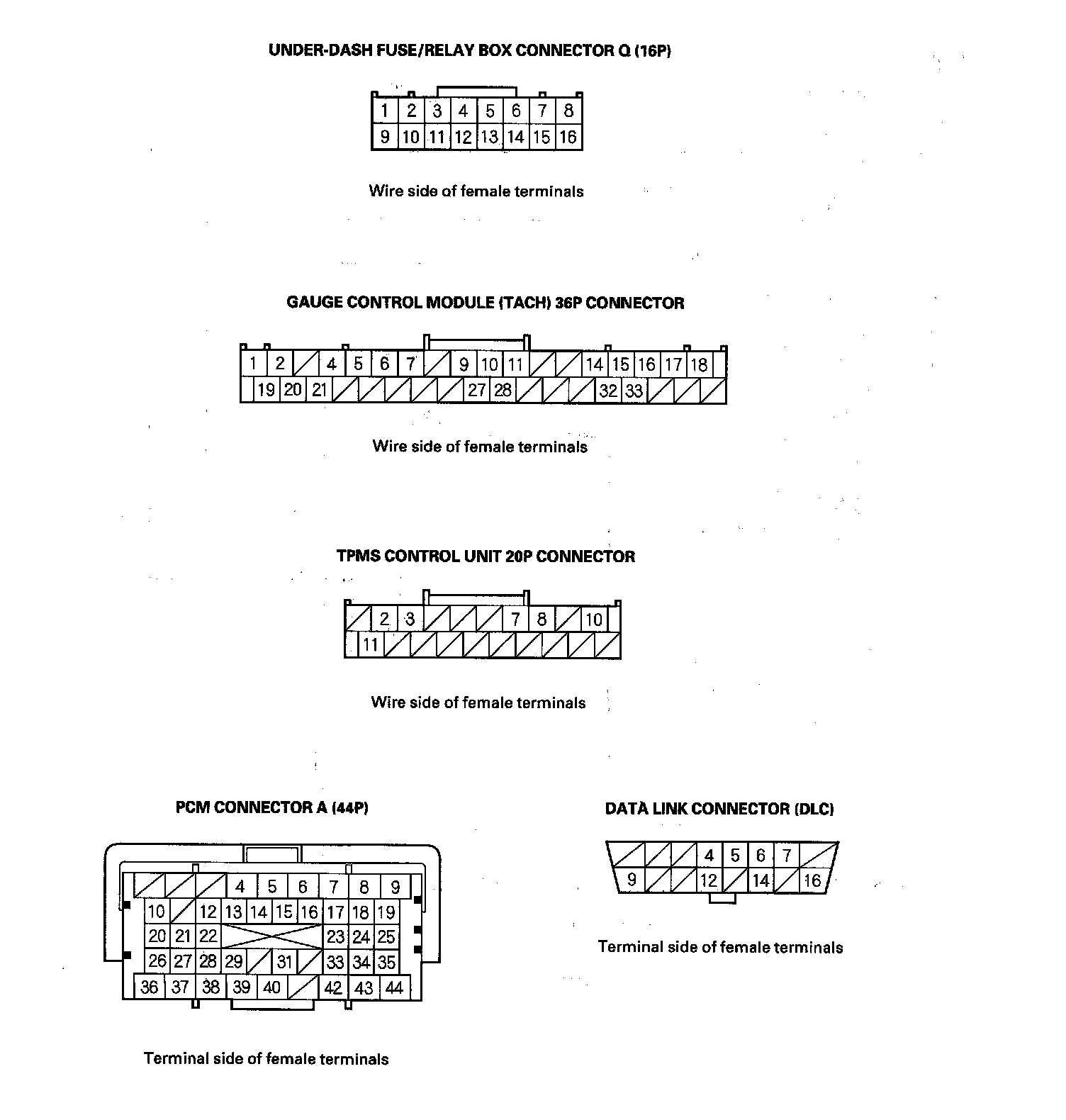

Tire Pressure Monitoring System Circuit Diagram (Part 2):
