IPU Compartment Wire Harness
IPU Compartment Wire Harness

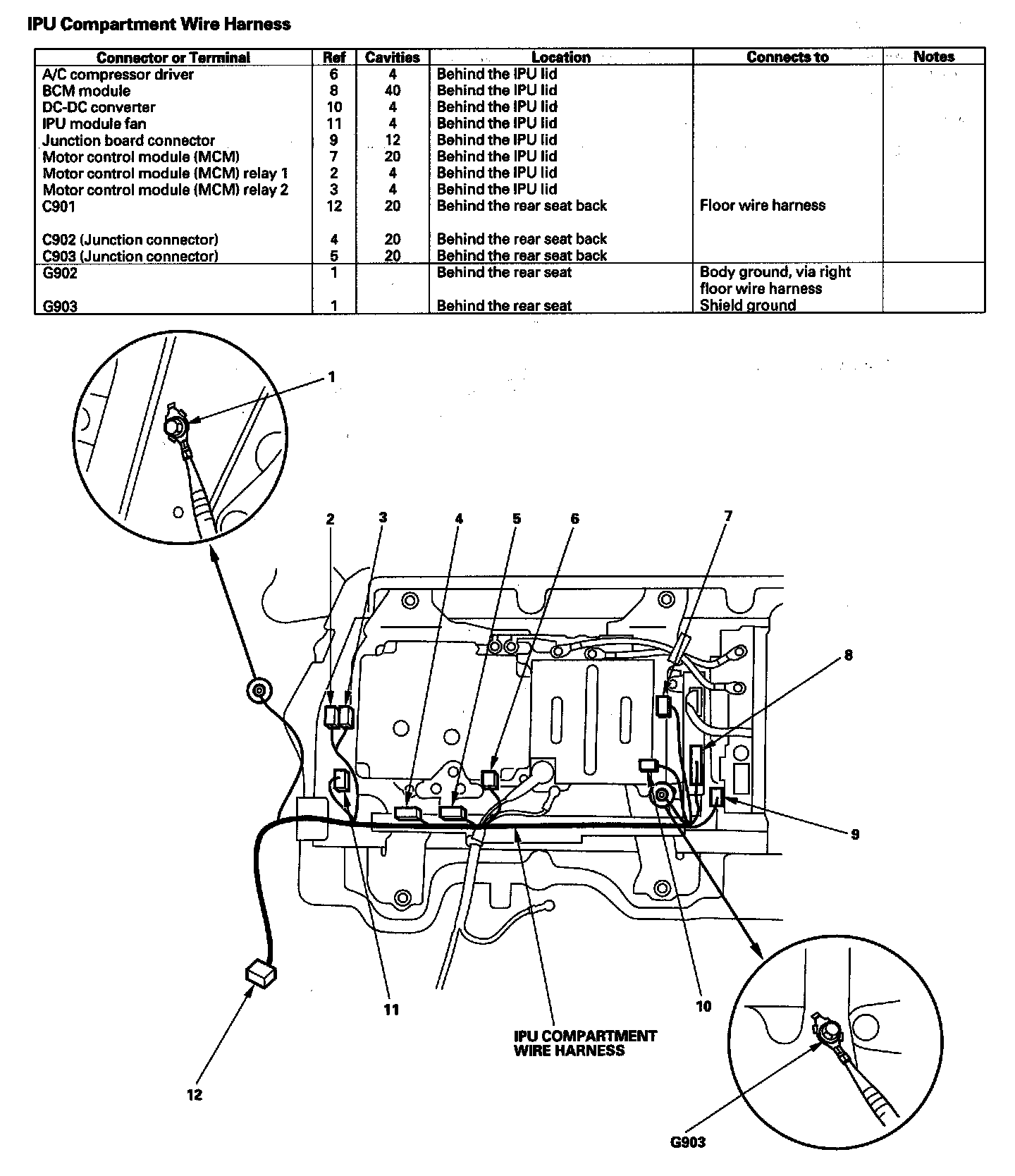

IPU Compartment Wire Harness:
IPU Compartment Wire Harness/IPU Fan Sub-harness:
