Rear Window Defogger Ground Wire
Rear Window Defogger Ground Wire

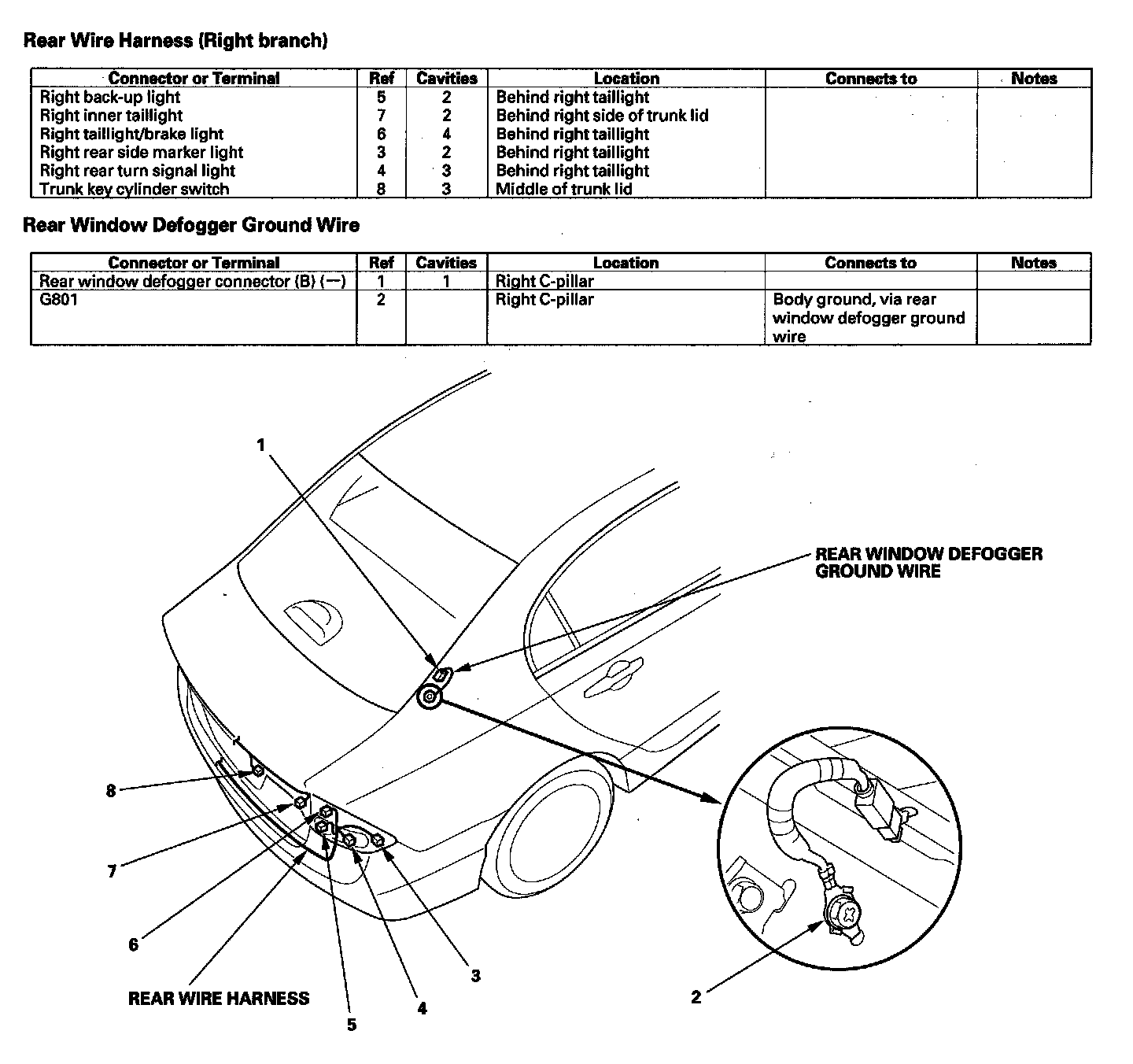

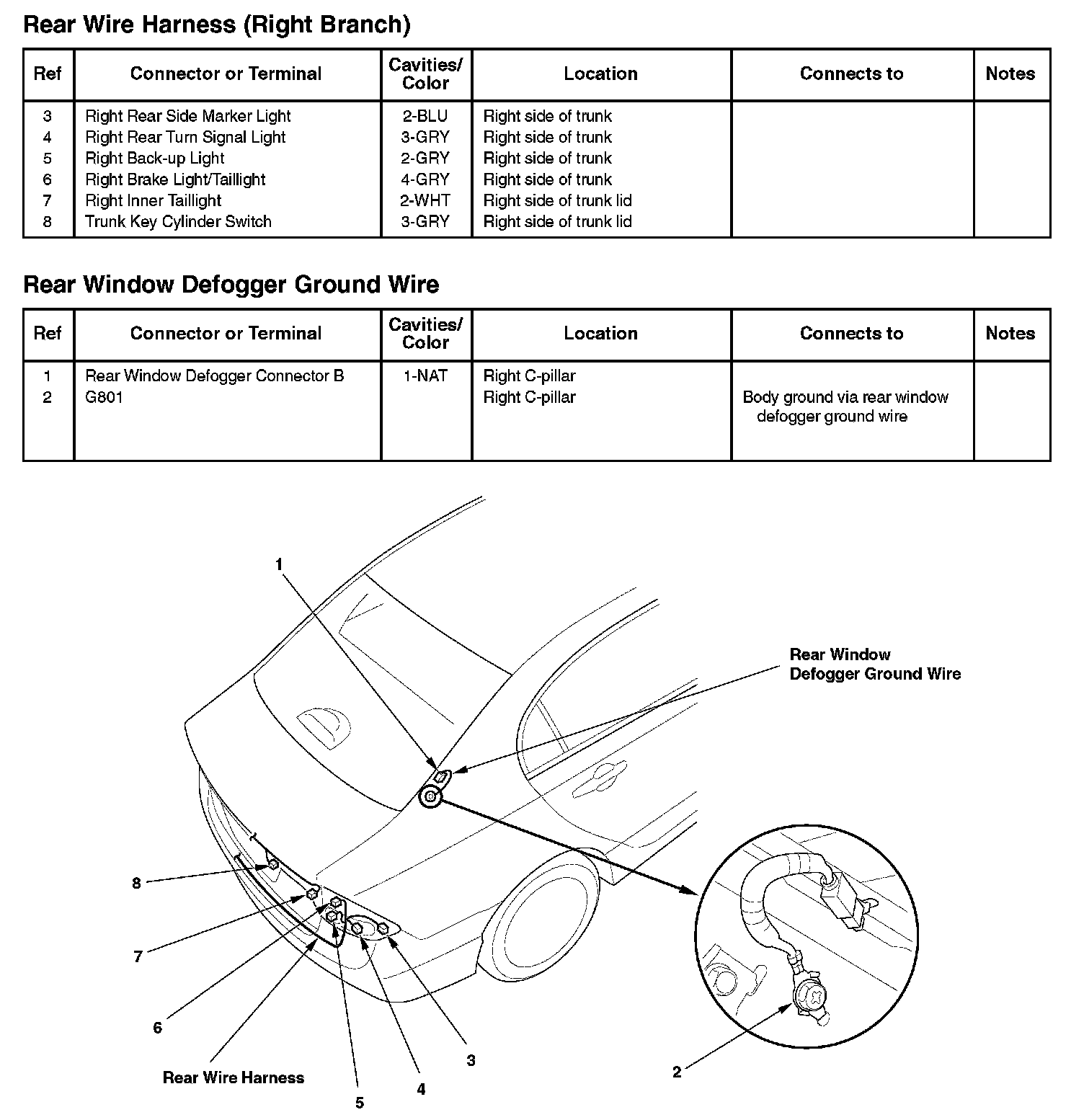

Rear Wire Harness (Right Branch)/Rear Window Defogger Ground Wire:
Rear Wire Harness (Right Branch)/Rear Window Defogger Ground Wire:
