Home >> Honda >> 2008 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Power Control System >> Locations

Power Control System: Locations

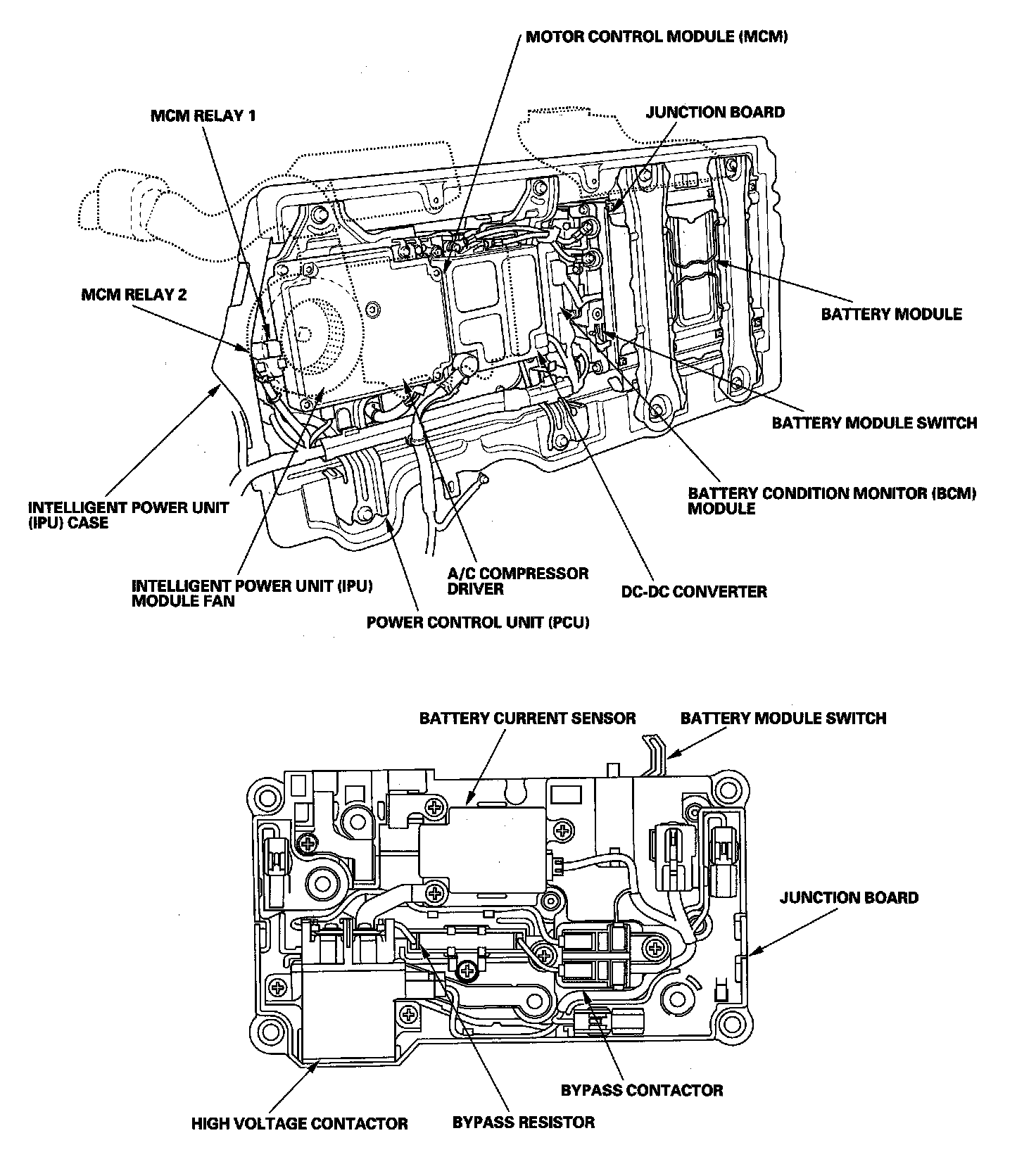

IMA System Component Location Index:
