Pinout Values and Diagnostic Parameters

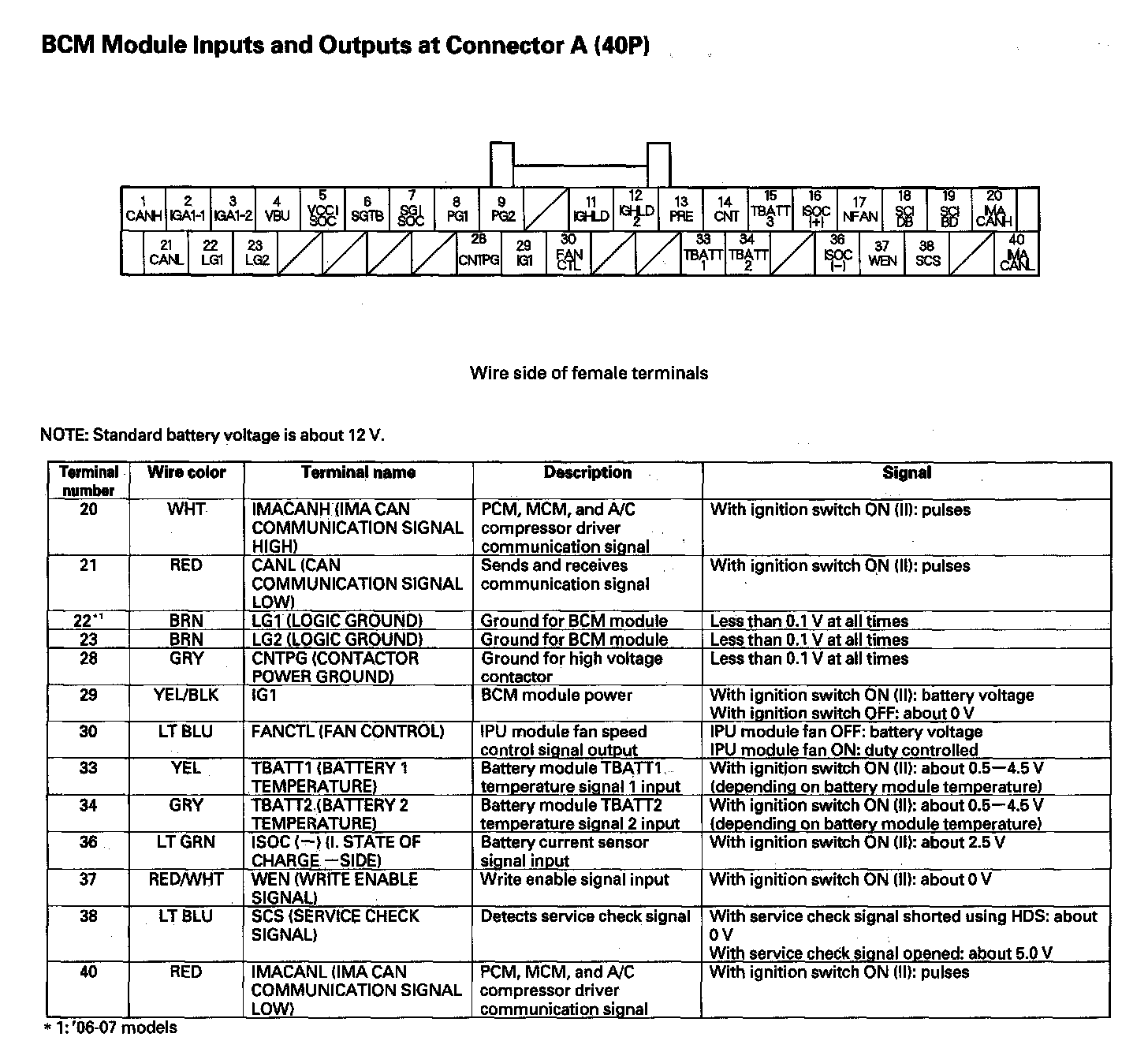

BCM Module Inputs And Outputs At Connector A (40P) Part 1:

BCM Module Inputs And Outputs At Connector A (40P) Part 2:

BCM Module Inputs And Outputs At Connector B (14P):

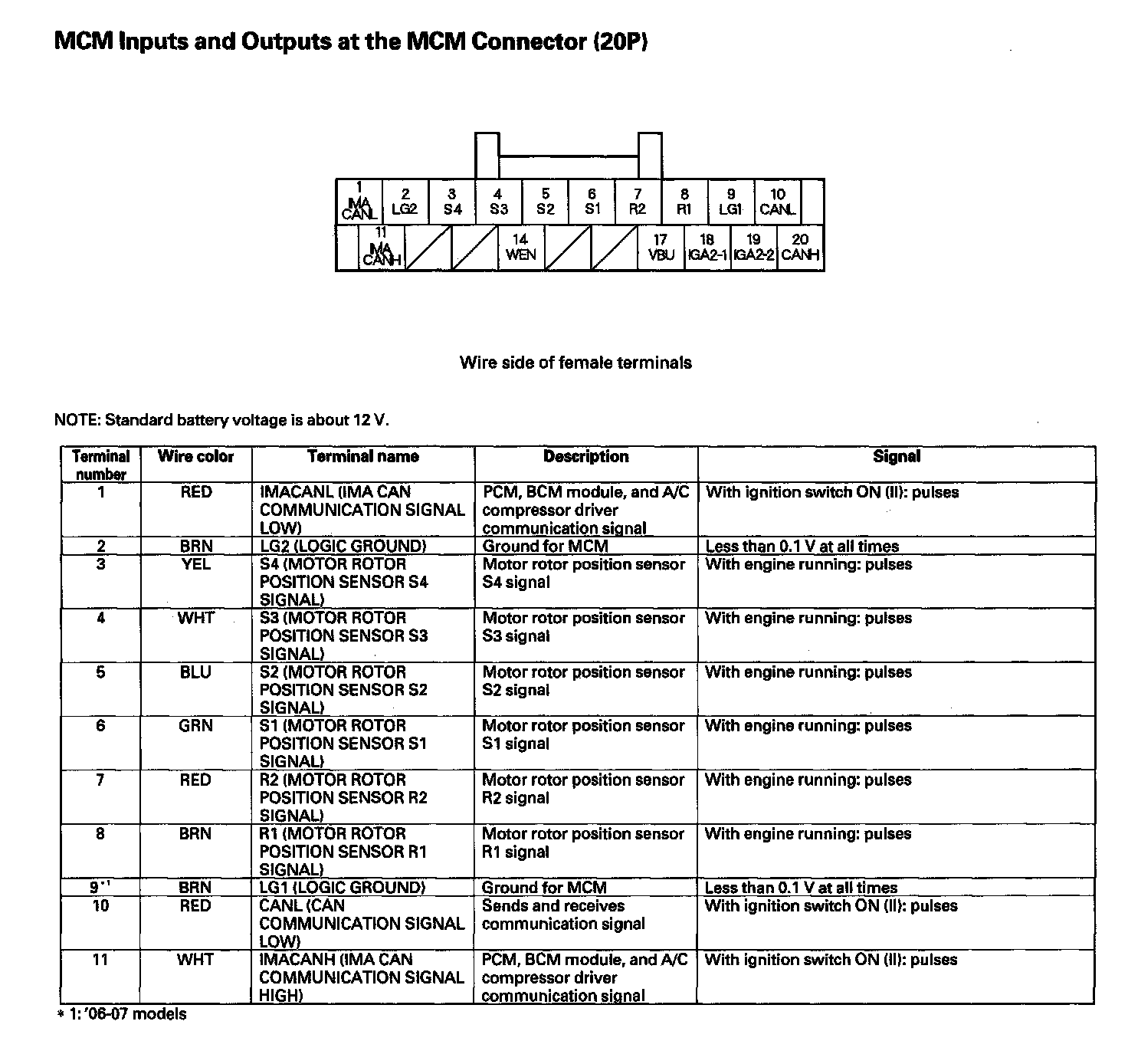

MCM Inputs And Outputs At The MCM Connector (20P) Part 1:

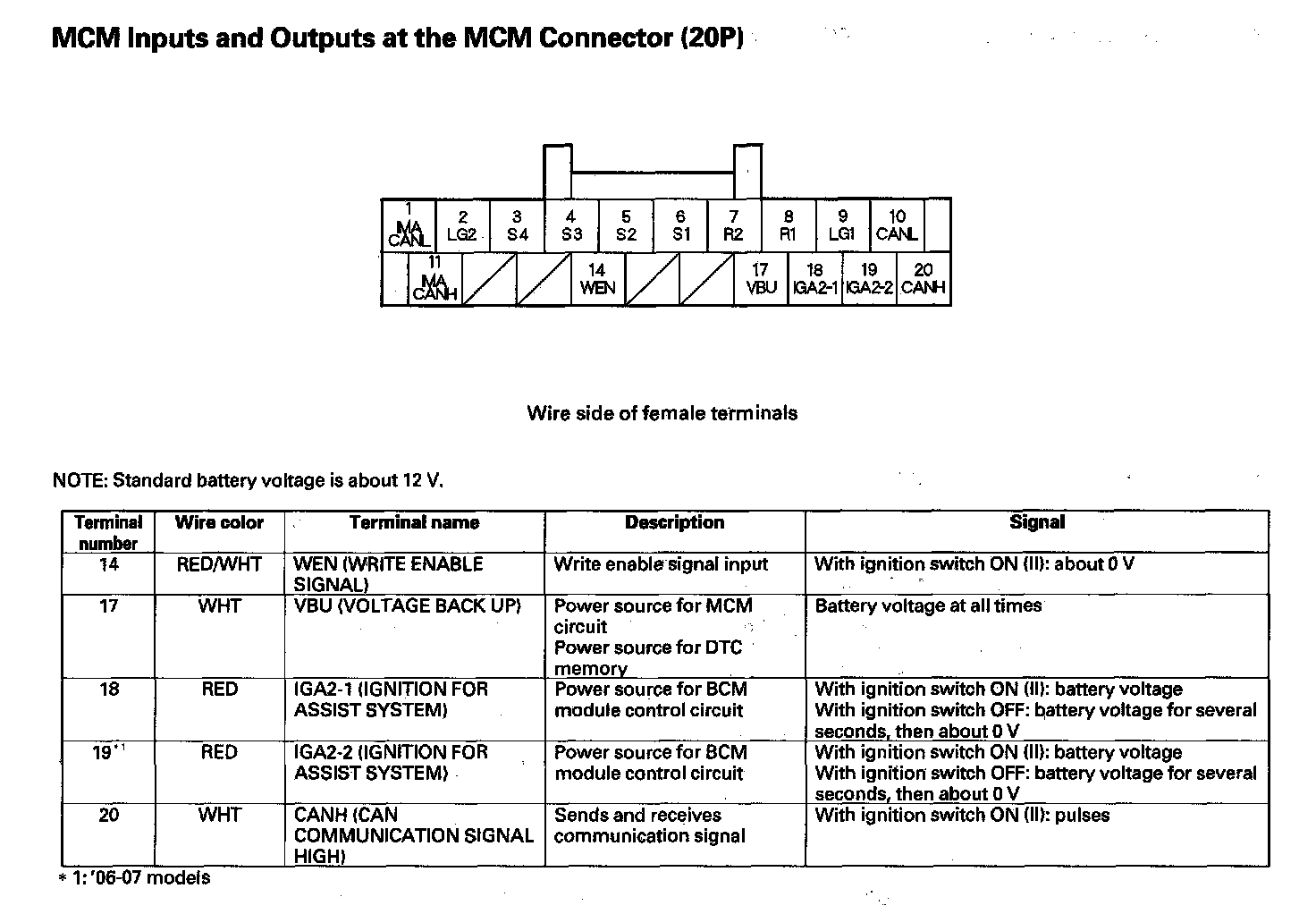

MCM Inputs And Outputs At The MCM Connector (20P) Part 2:
