Courtesy Lamp: Diagrams

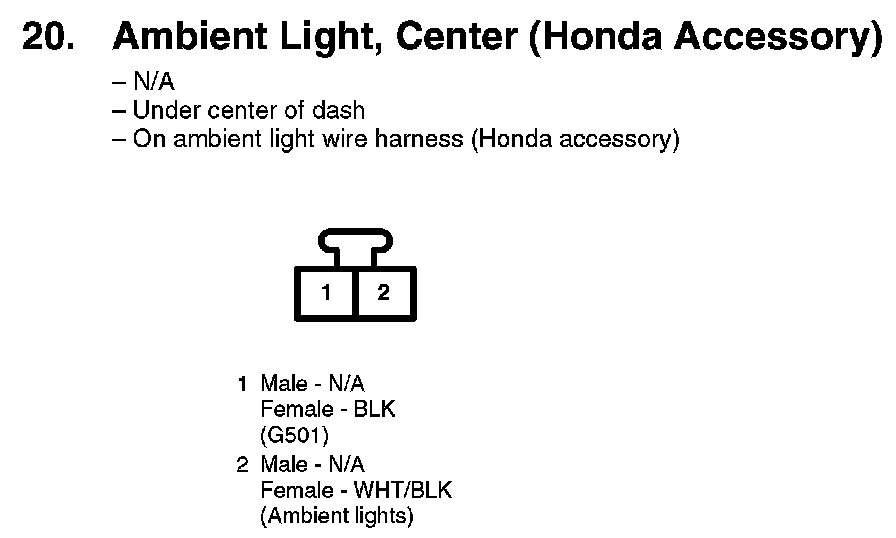

20. Ambient Light, Center (Honda Accessory):

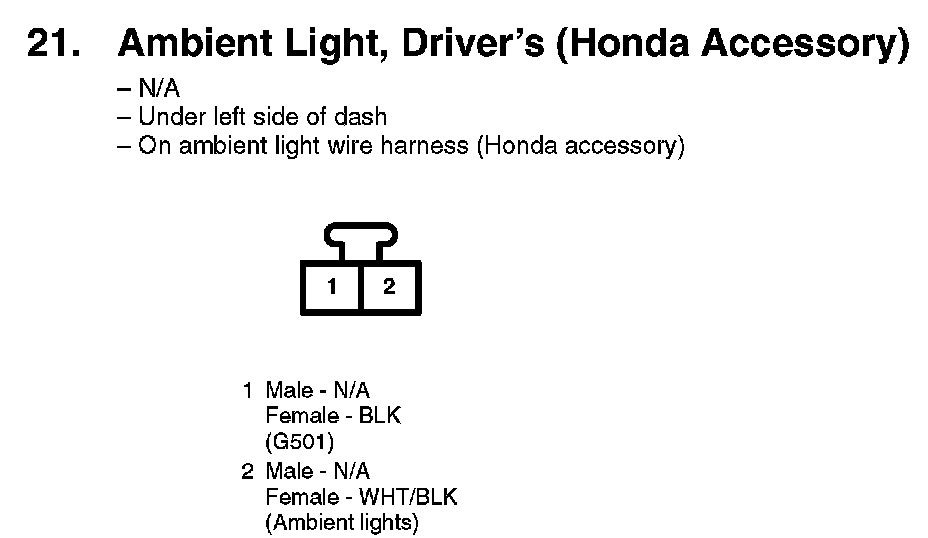

21. Ambient Light, Driver's (Honda Accessory):

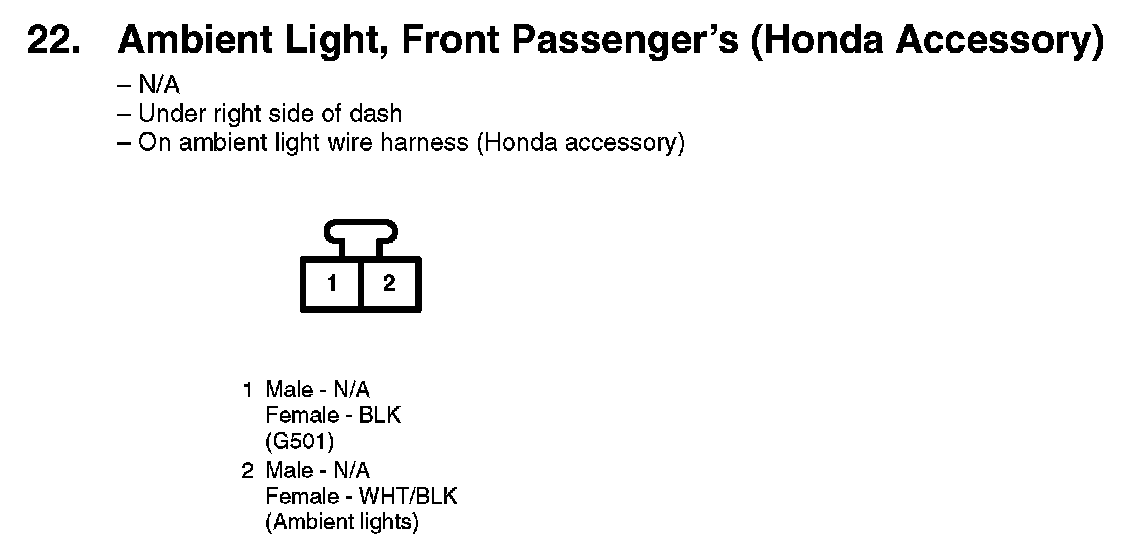

22. Ambient Light, Front Passenger's (Honda Accessory):

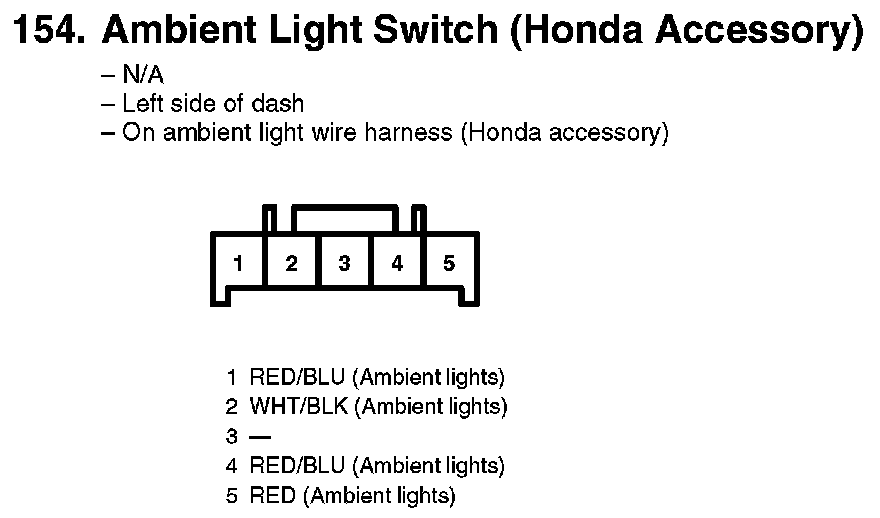

154. Ambient Light Switch (Honda Accessory):
