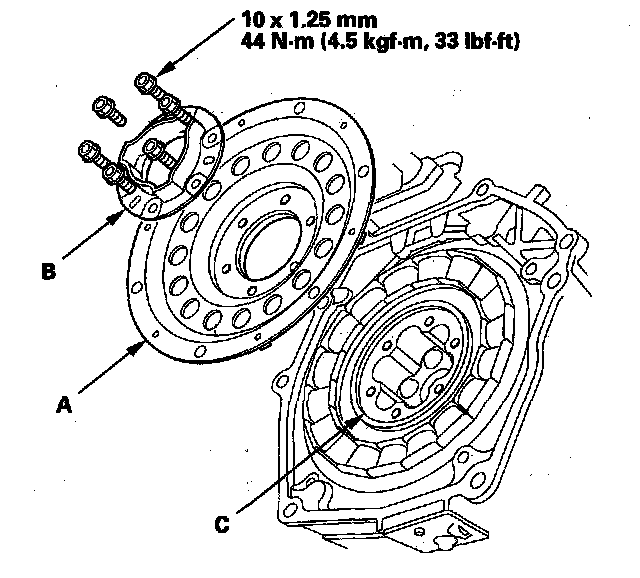

Flex Plate

Drive plate






Flywheel to drive plate
Attach the flywheel to the drive plate with six bolts. Rotate the crankshaft pulley to tighten the bolts to 1/2 of the specified torque, then to the final torque, in a crisscross pattern.

Bolt 6 x 1.0 mm 12 Nm (1.2 kgf-m, 8.7 lbf-ft)
