Continuously Variable Transmission/Transaxle: Locations
Component Location Index

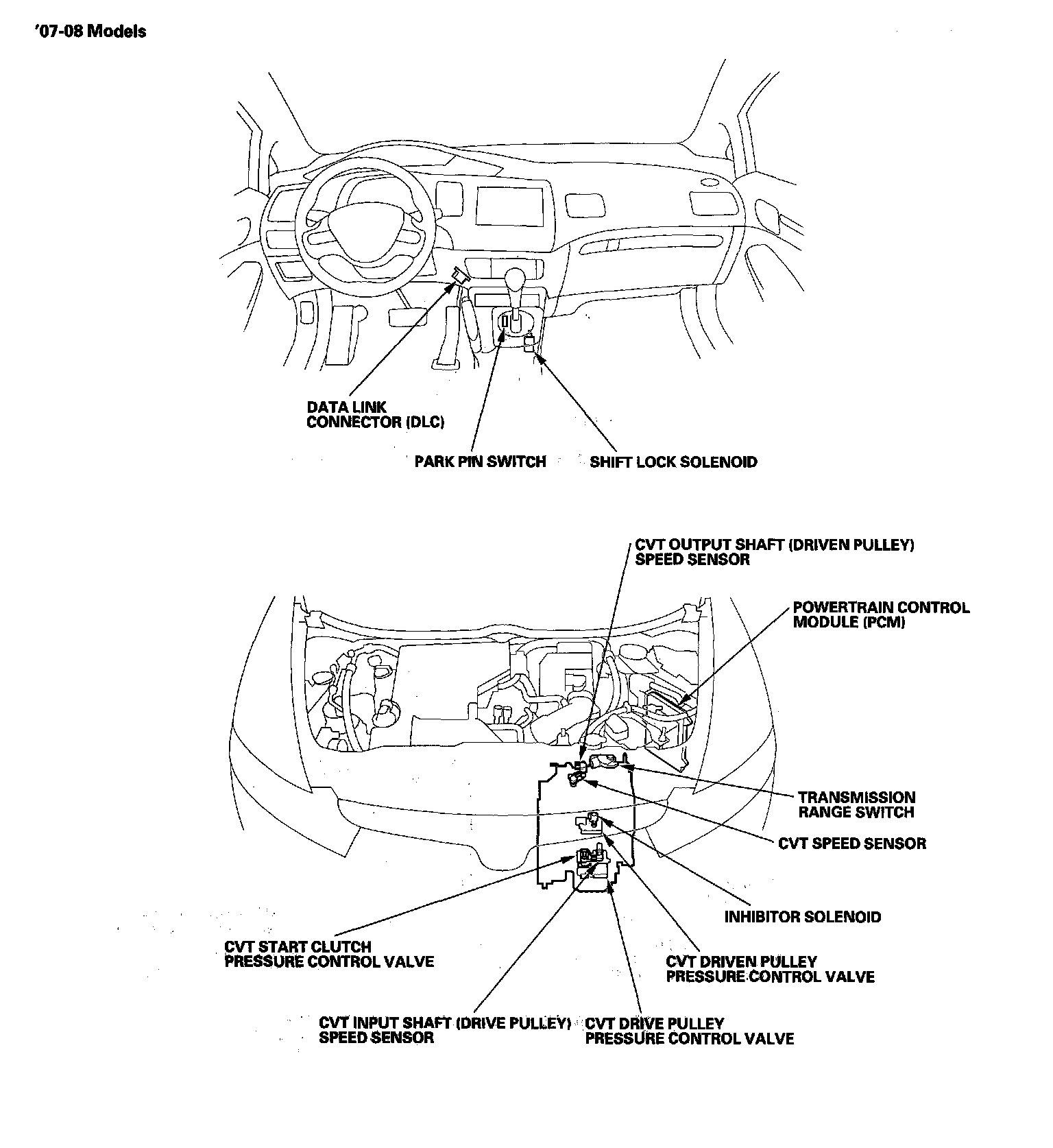

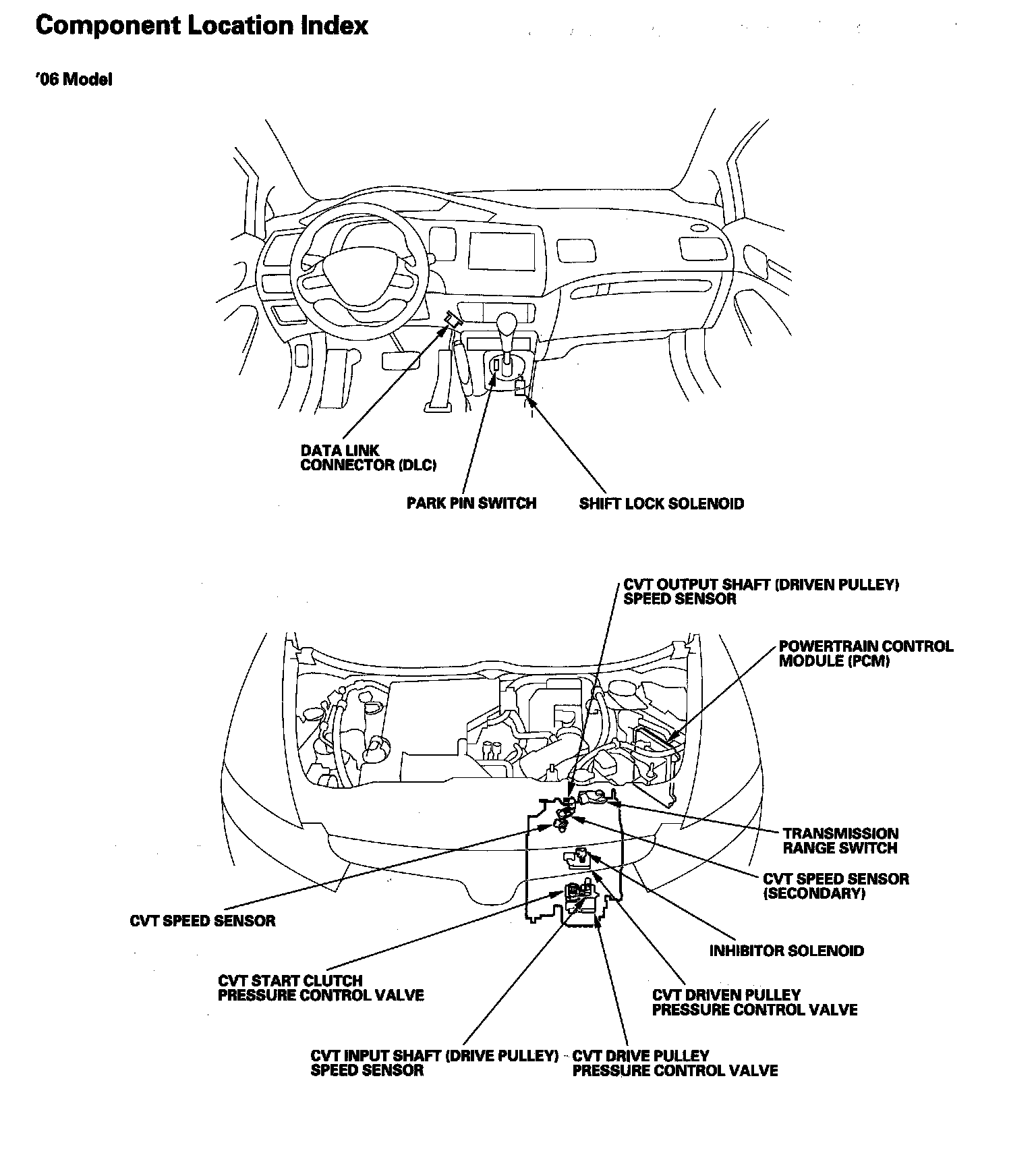

Continuously Variable Transmission Component Location Index (Part 1):
Continuously Variable Transmission Component Location Index (Part 2):
