Tire Pressure Module

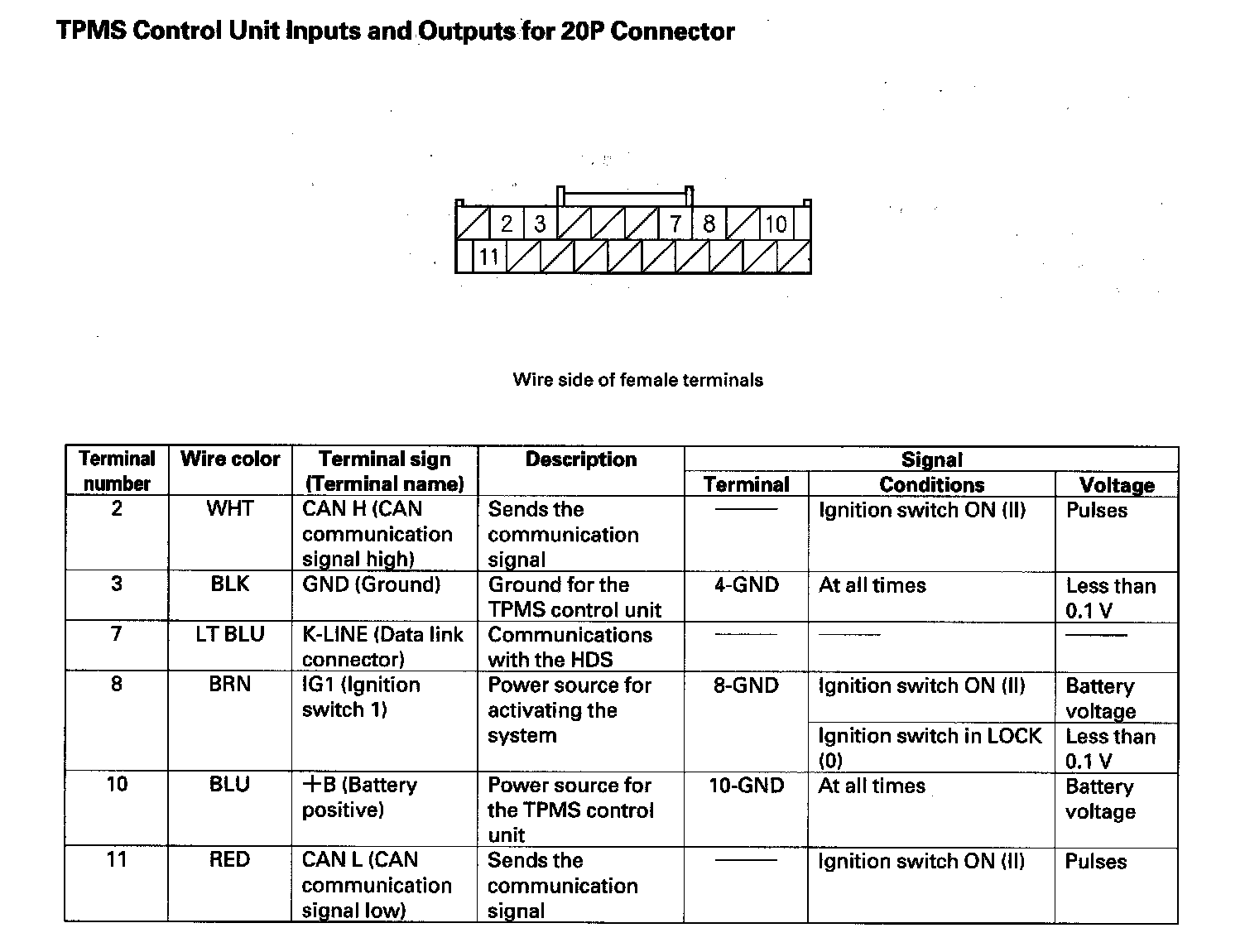

TPMS Control Unit Inputs and Outputs for 20P Connector:



TPMS Control Unit Inputs and Outputs for 20P Connector:
