Antenna Sub-lead (AM/FM) (GX)
Antenna Sub-lead (AM/FM) (GX)

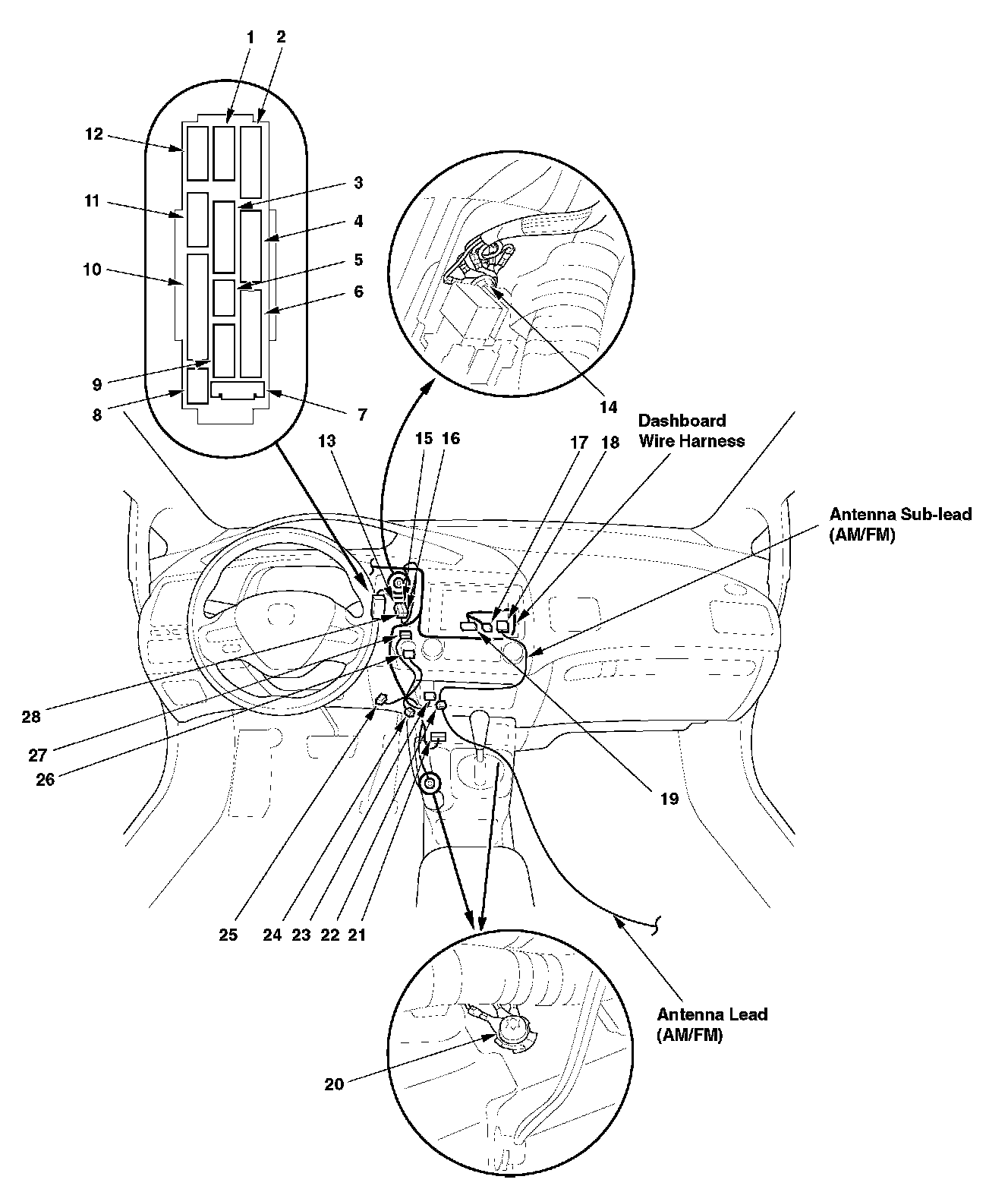

Harness Location View:

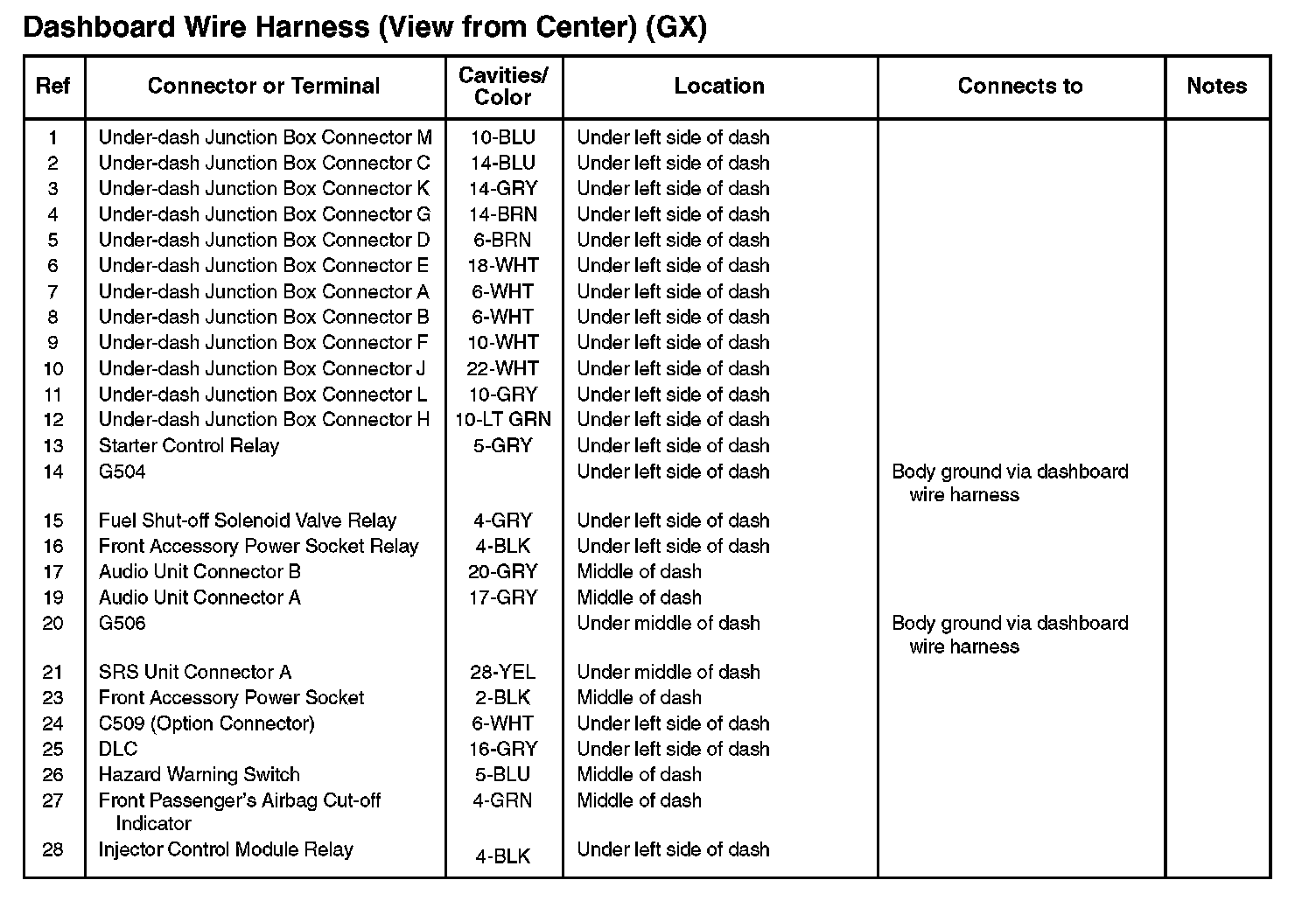

Dashboard Wire Harness (View From Center) (GX):
