Rear Wire Harness (Left Branch)
Rear Wire Harness (Left Branch)

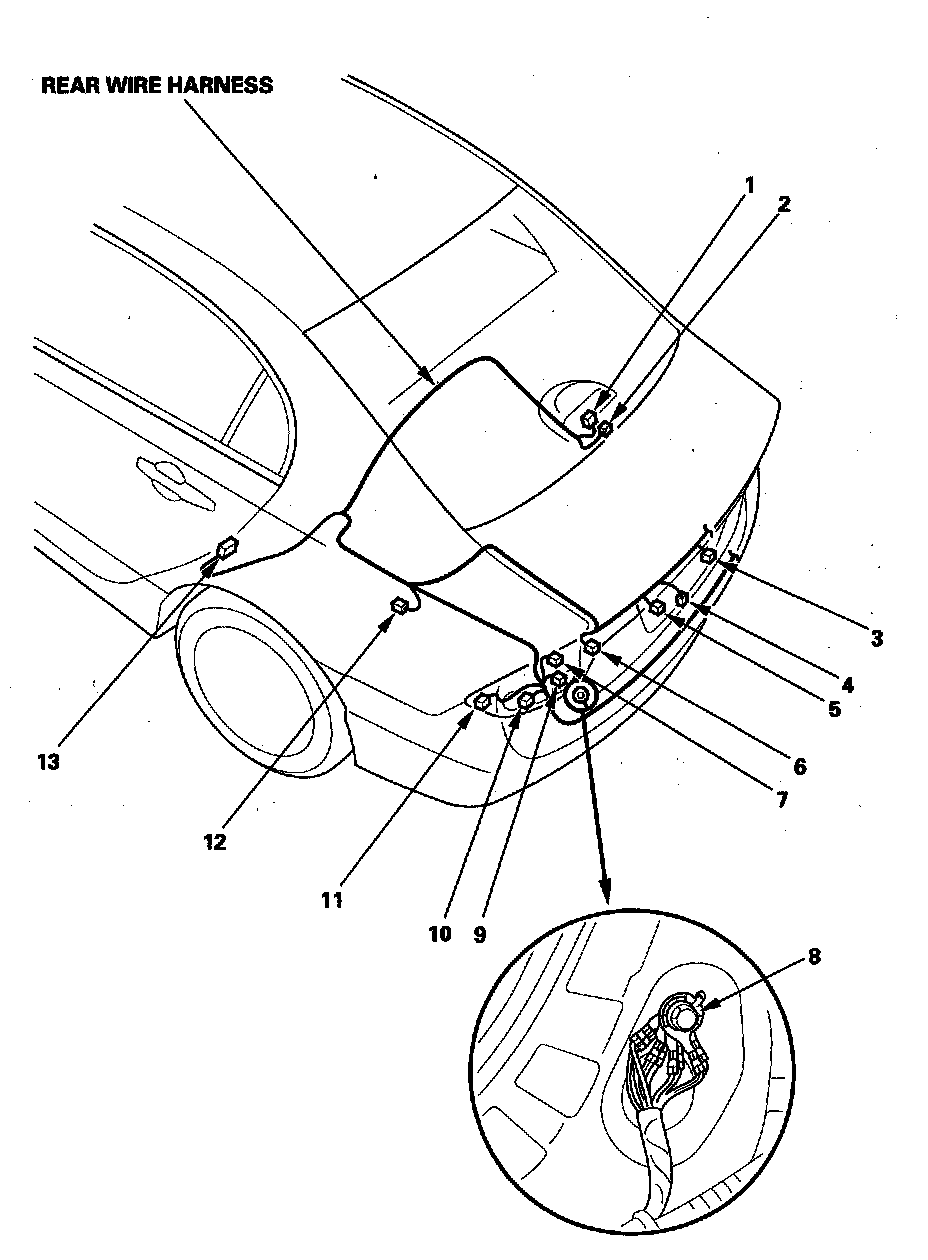

Harness Location View:
Rear Wire Harness (Left Branch):
