Transmission Range Switch Sub-Harness (GX)
Transmission Range Switch Sub-Harness (GX)

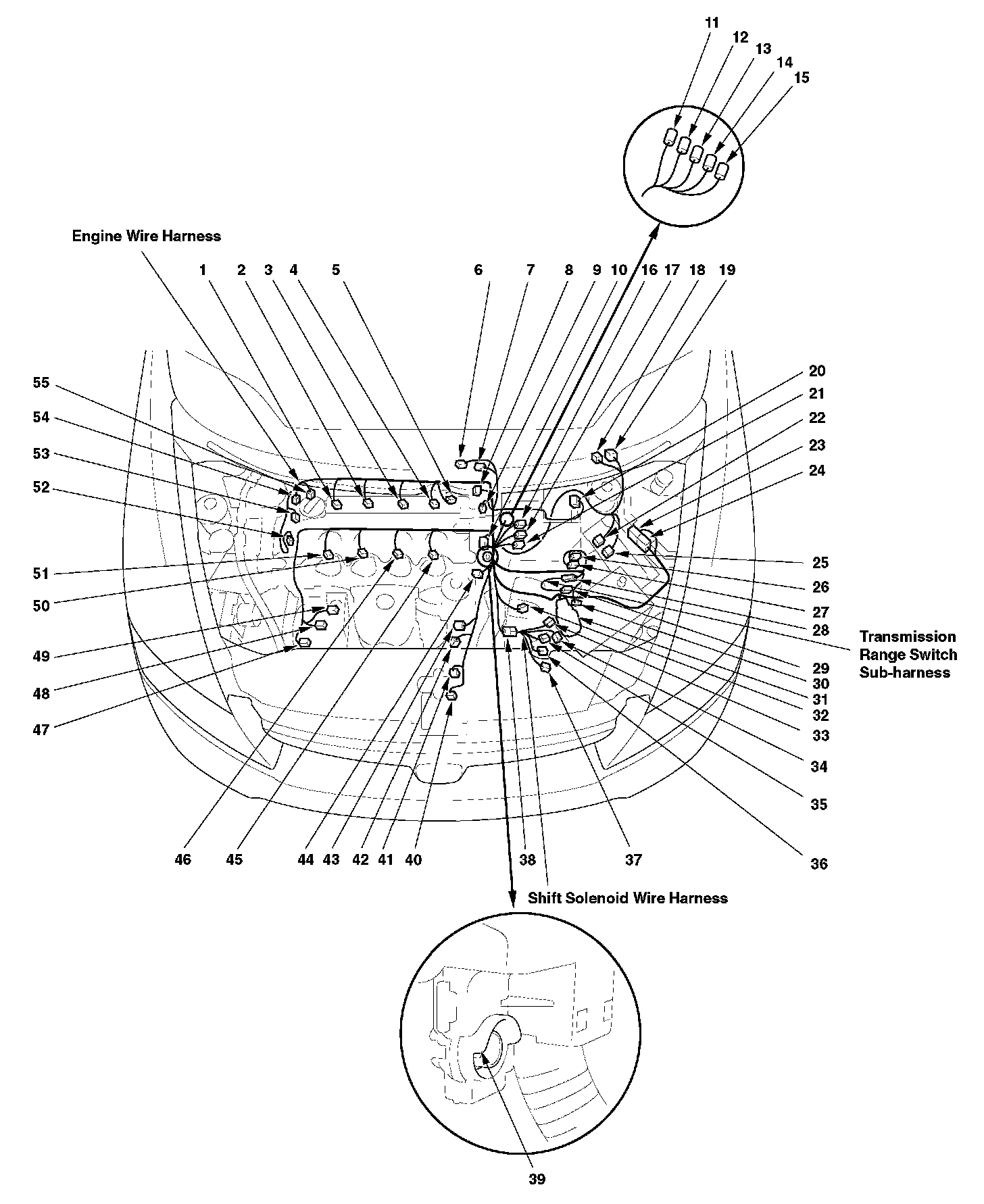

Harness Location View:

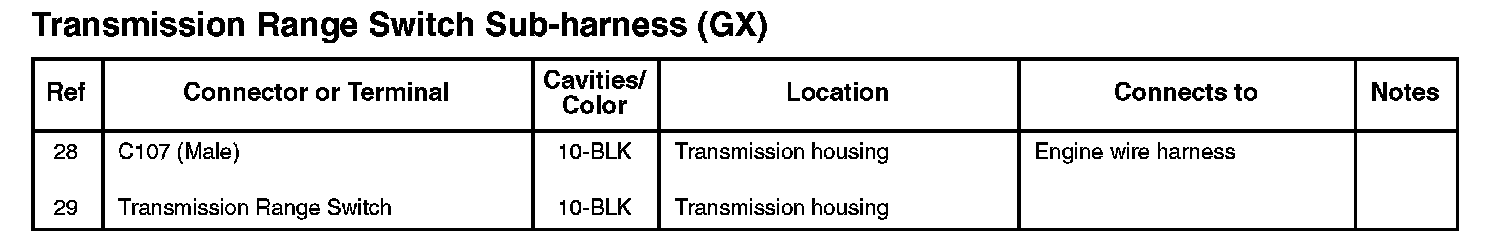

Transmission Range Switch Sub-harness (GX):
