Floor Wire Harness (Left Branch) (4-Door: DX, DX-G, LX, EX, Si)
Floor Wire Harness (Left Branch) (4-Door: DX, DX-G, LX, EX, Si)

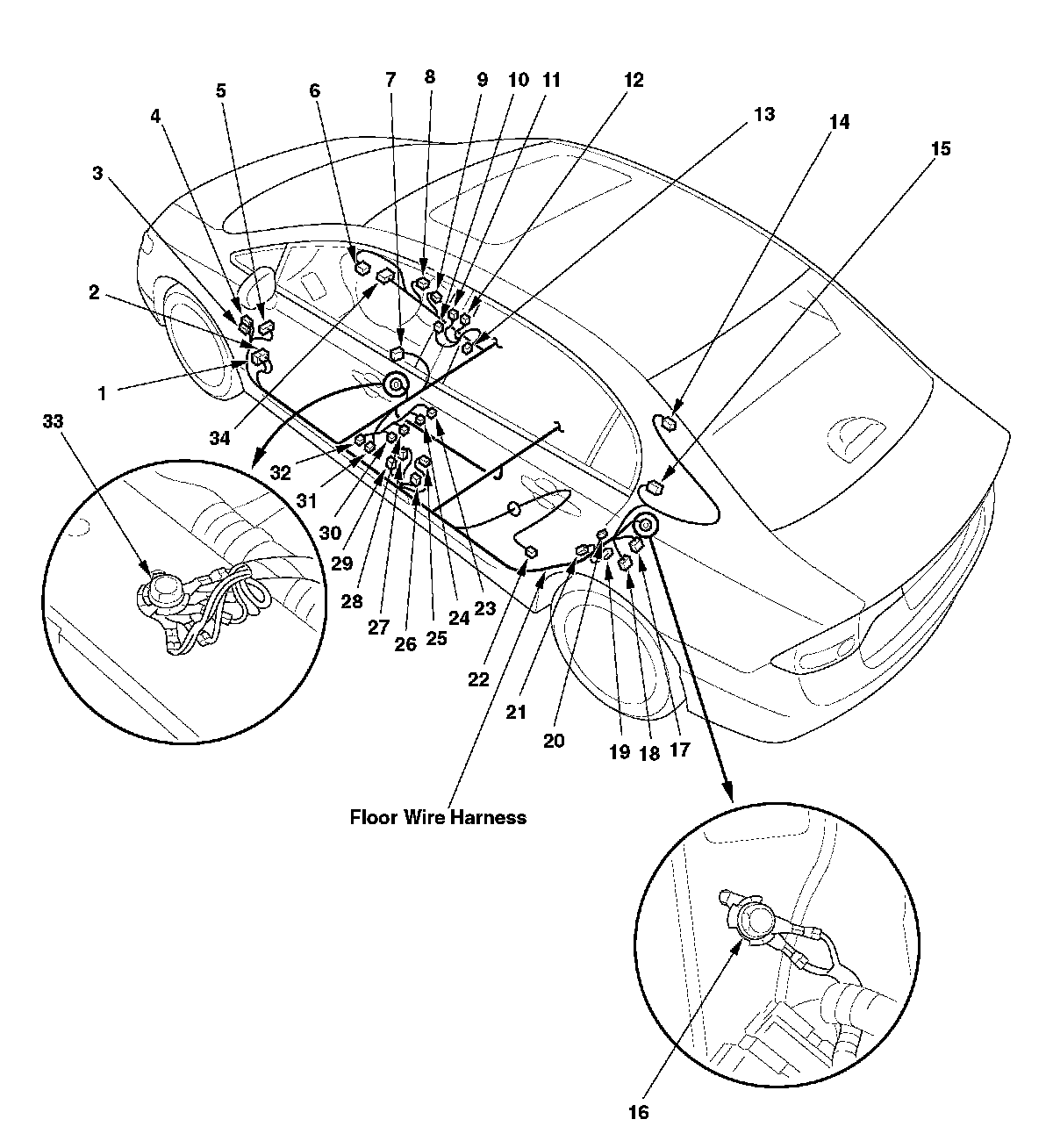

Harness Location View:

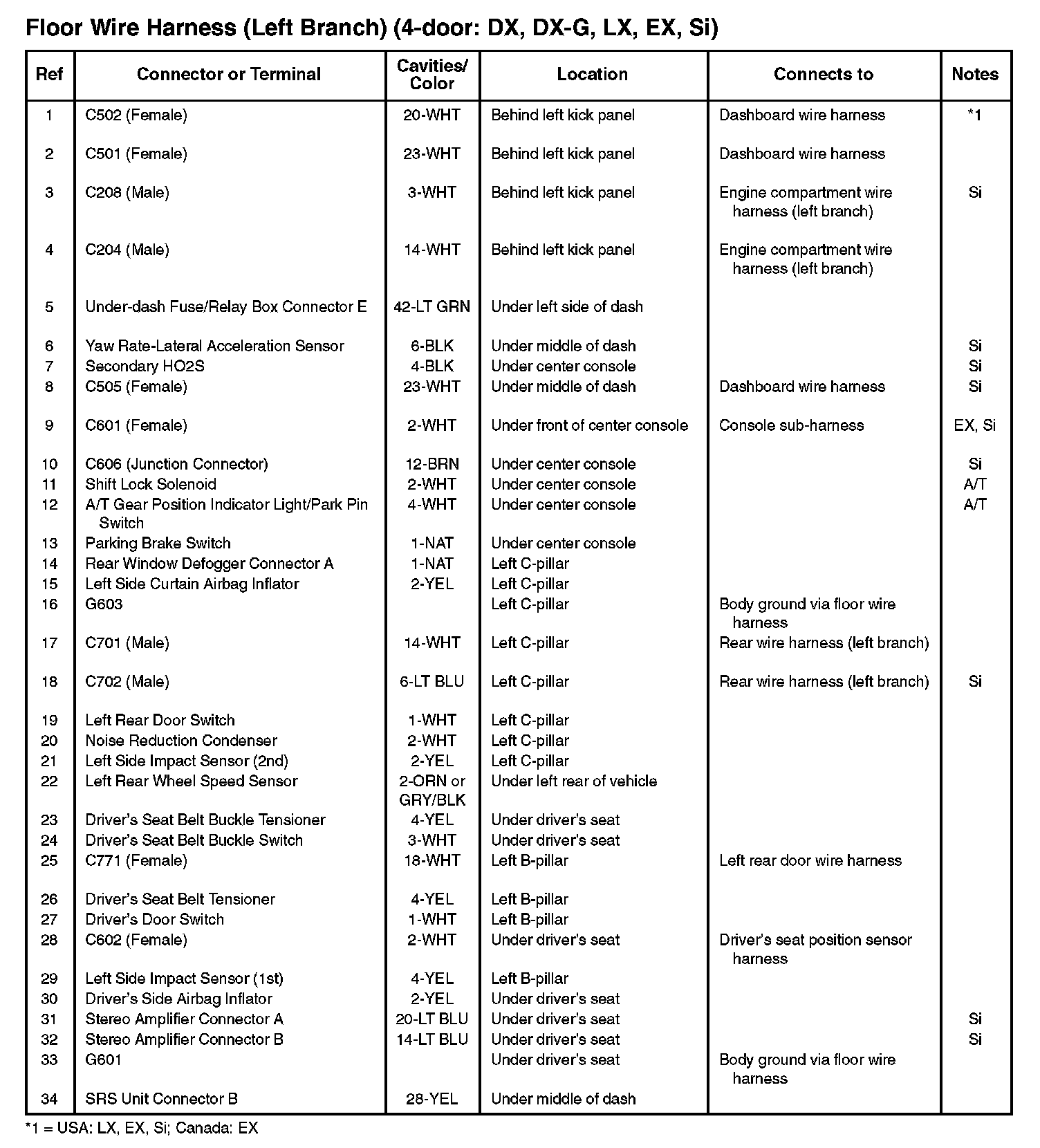

Floor Wire Harness (Left Branch) (4-door: DX, DX-G, LX, EX, Si):
