Home >> Honda >> 2008 >> Civic L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connectors >> Connector ID By Location on Harness >> Roof Wire Harness (2-Door: DX, DX-G, LX)

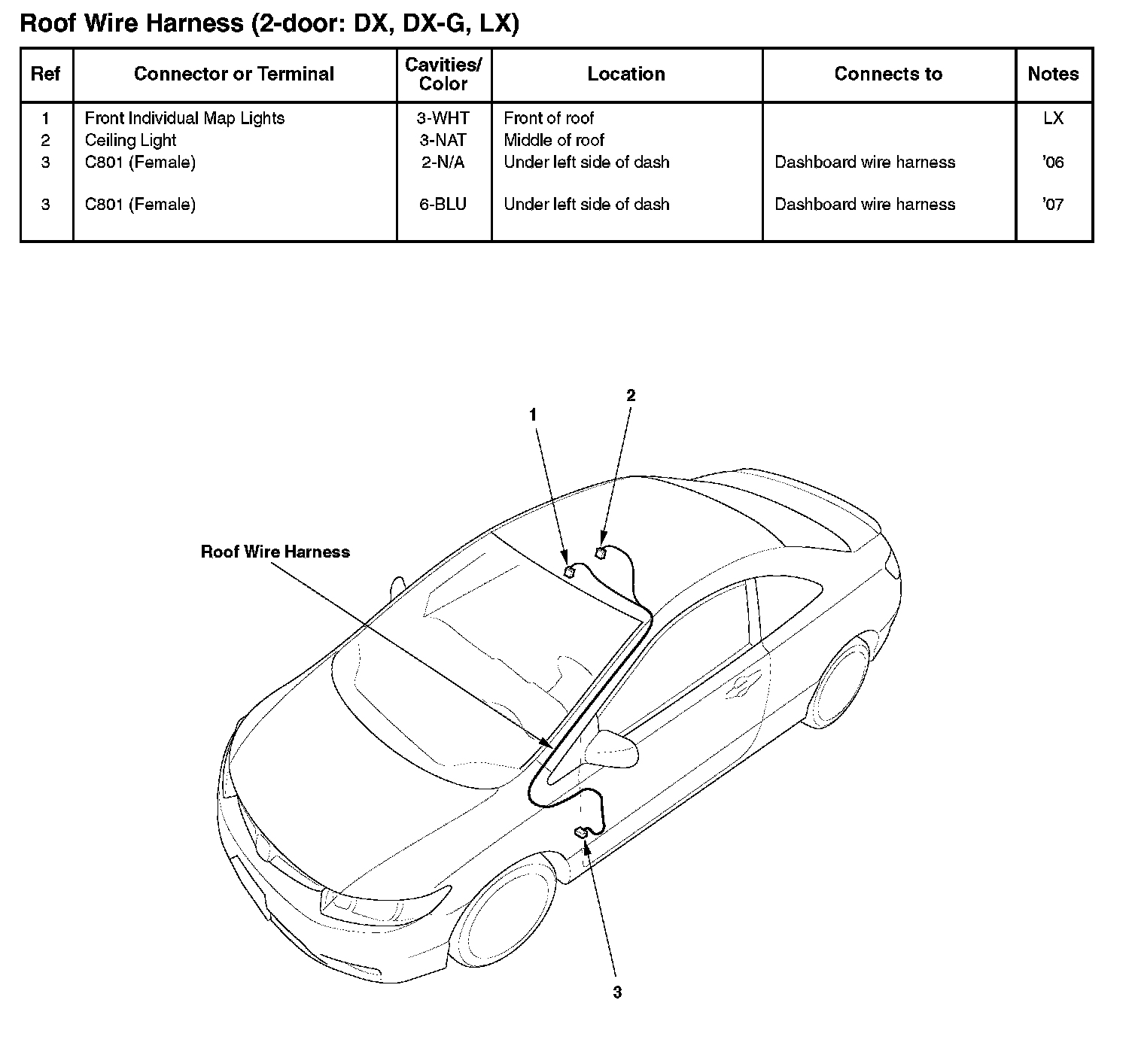

Roof Wire Harness (2-Door: DX, DX-G, LX)

Roof Wire Harness (2-door: DX, DX-G, LX):
