Diagram Set 120 (Power Windows)

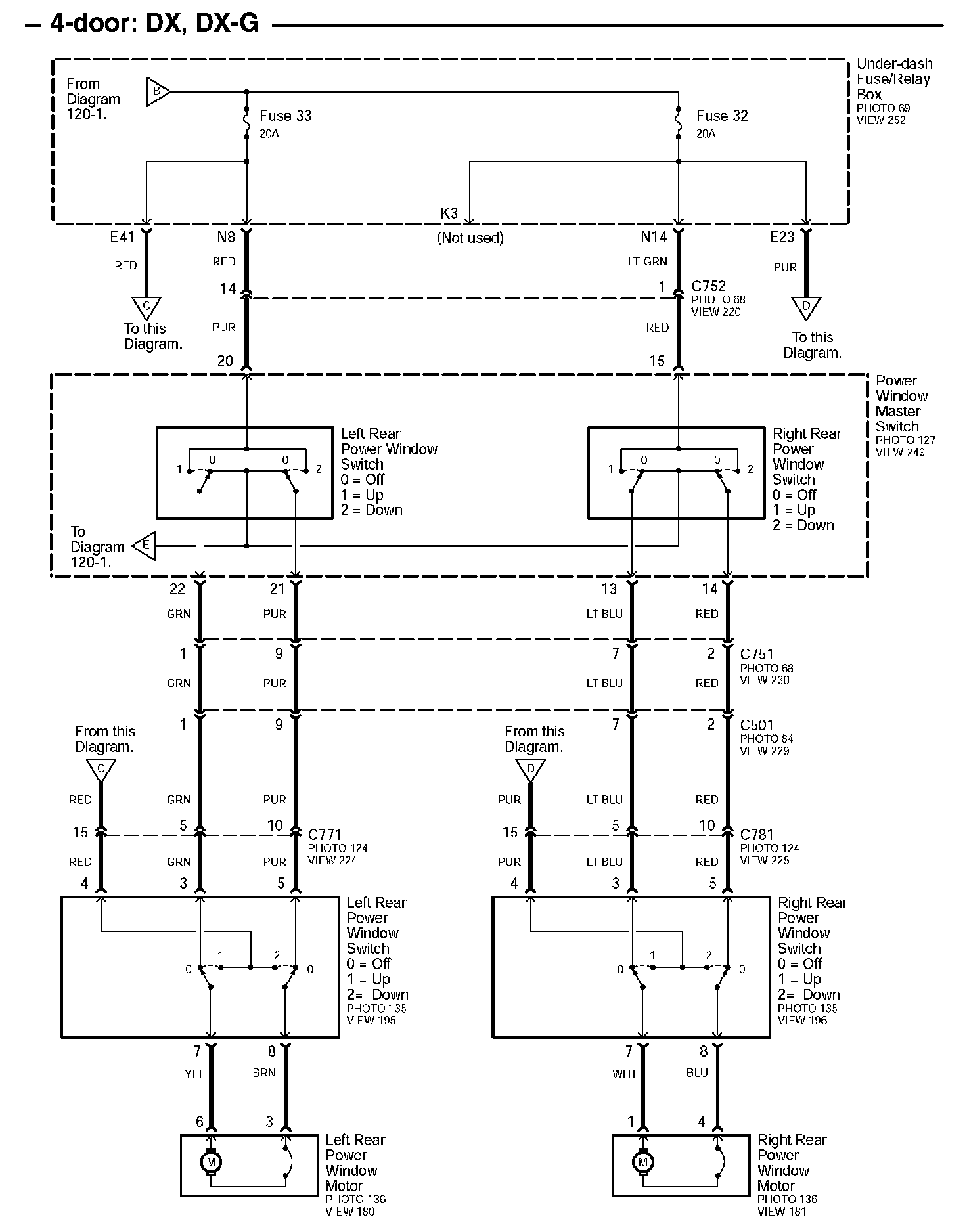

Diagram 120-0:

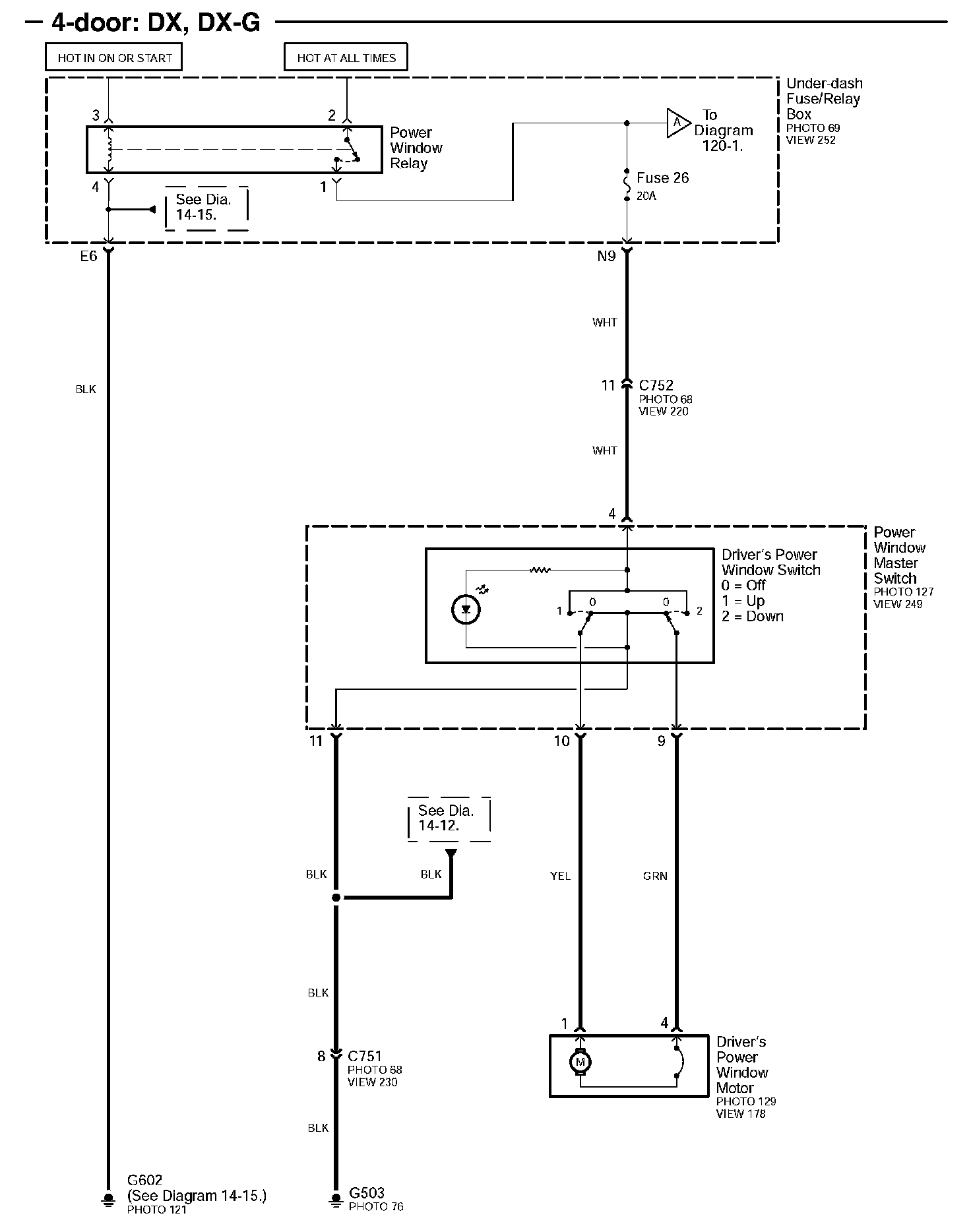

Diagram 120-1:

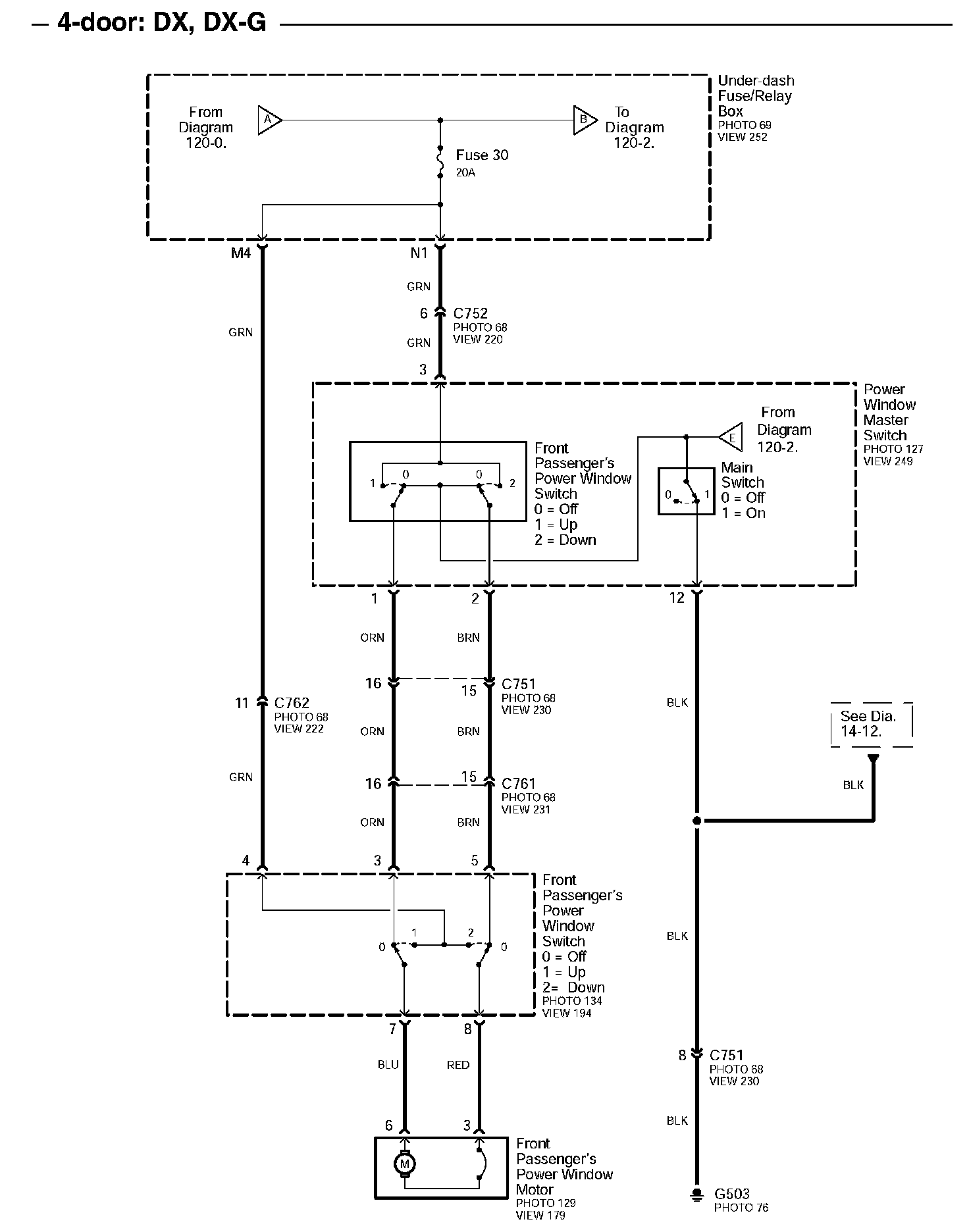

Diagram 120-2:



Diagram 120-3:



Diagram 120-4:



Diagram 120-5:



Diagram 120-6:



Diagram 120-7:



Diagram 120-8:



Diagram 120-9:
