Home >> Honda >> 2008 >> Civic L4-1.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 147 (Seat Heaters)

Diagram Set 147 (Seat Heaters)

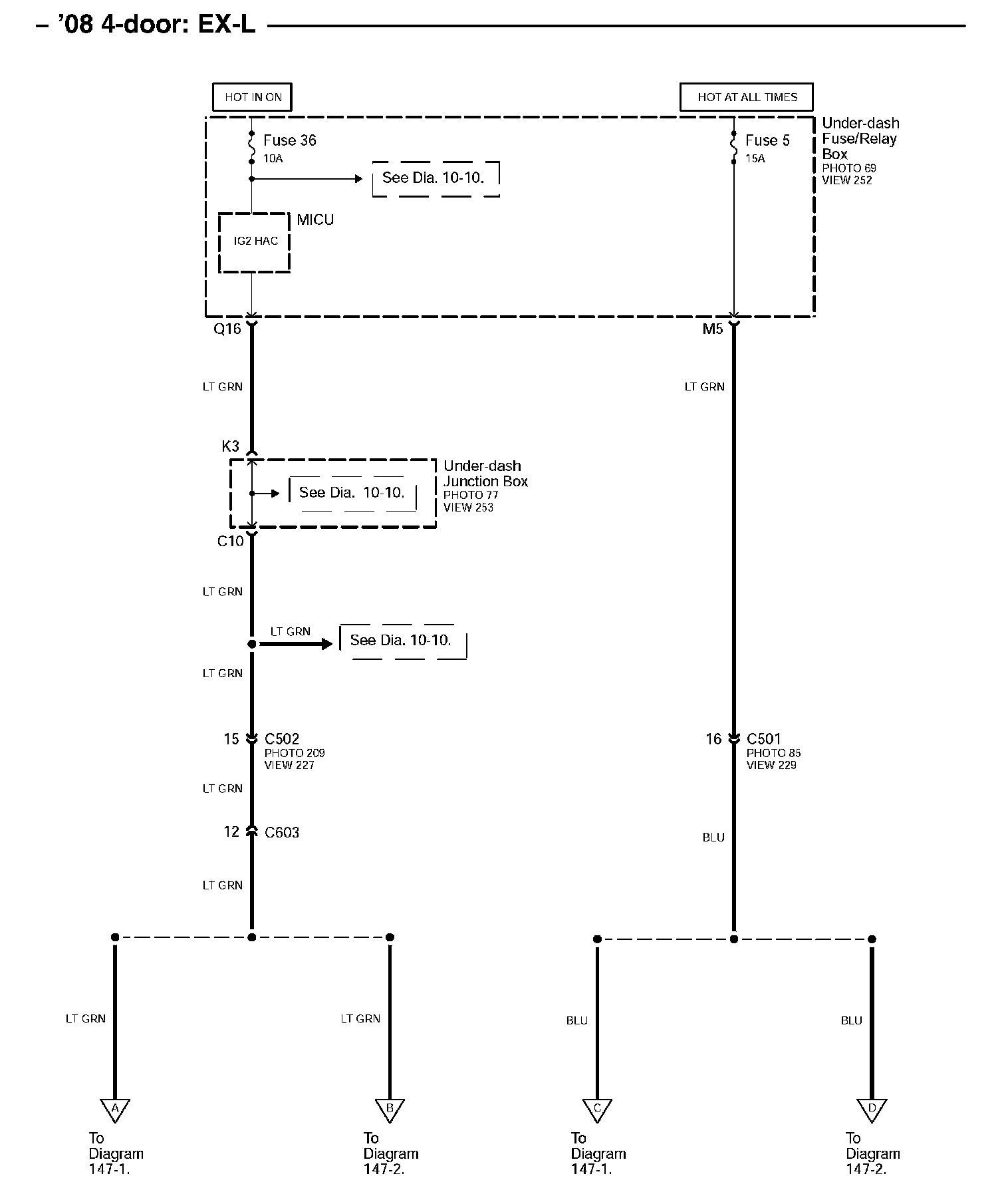

Diagram 147-0:



Diagram 147-1:



Diagram 147-2:

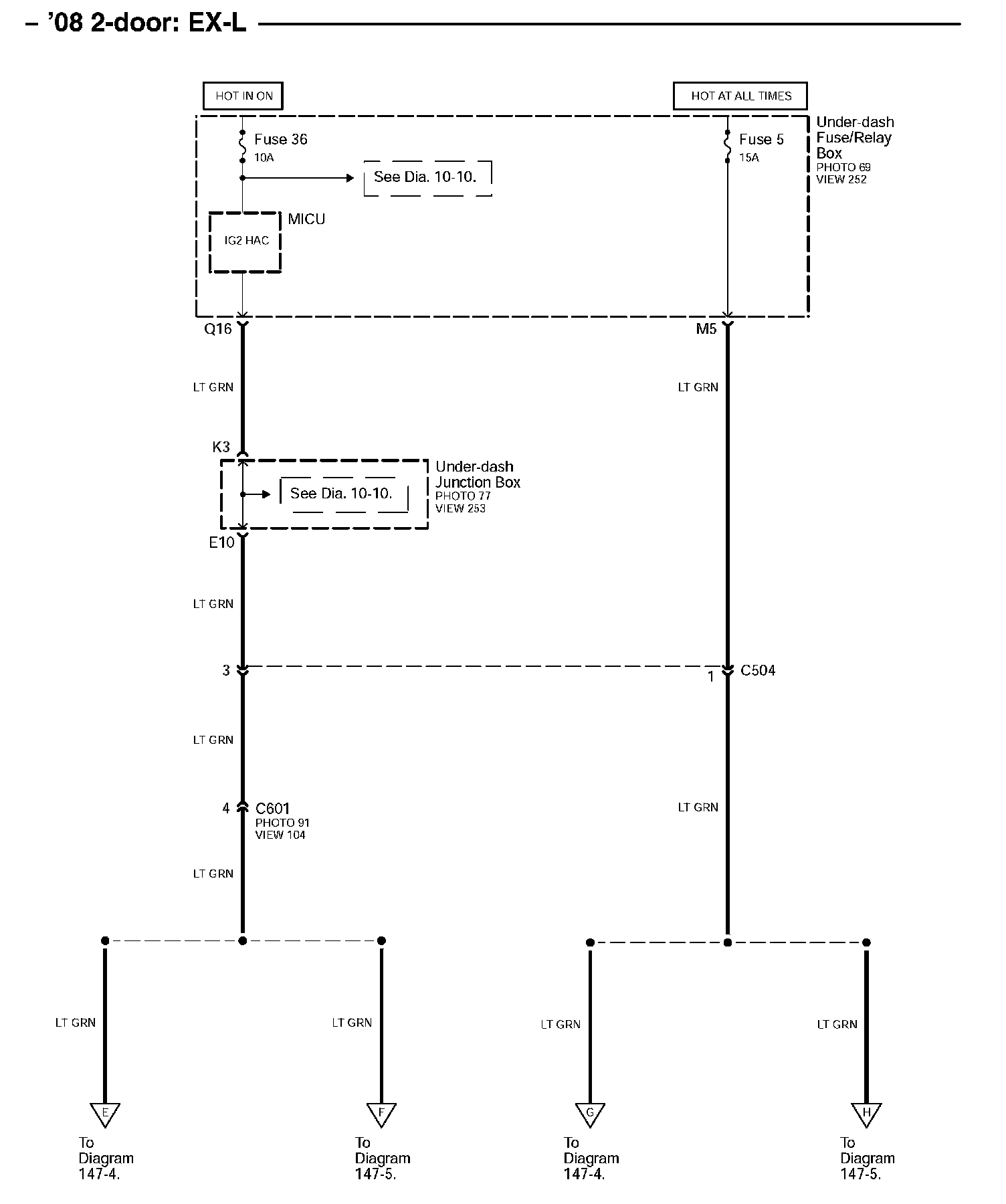

Diagram 147-3:



Diagram 147-4:



Diagram 147-5:
