Automatic Transmission Circuit Diagram
Circuit Diagram - PCM A/T Control System

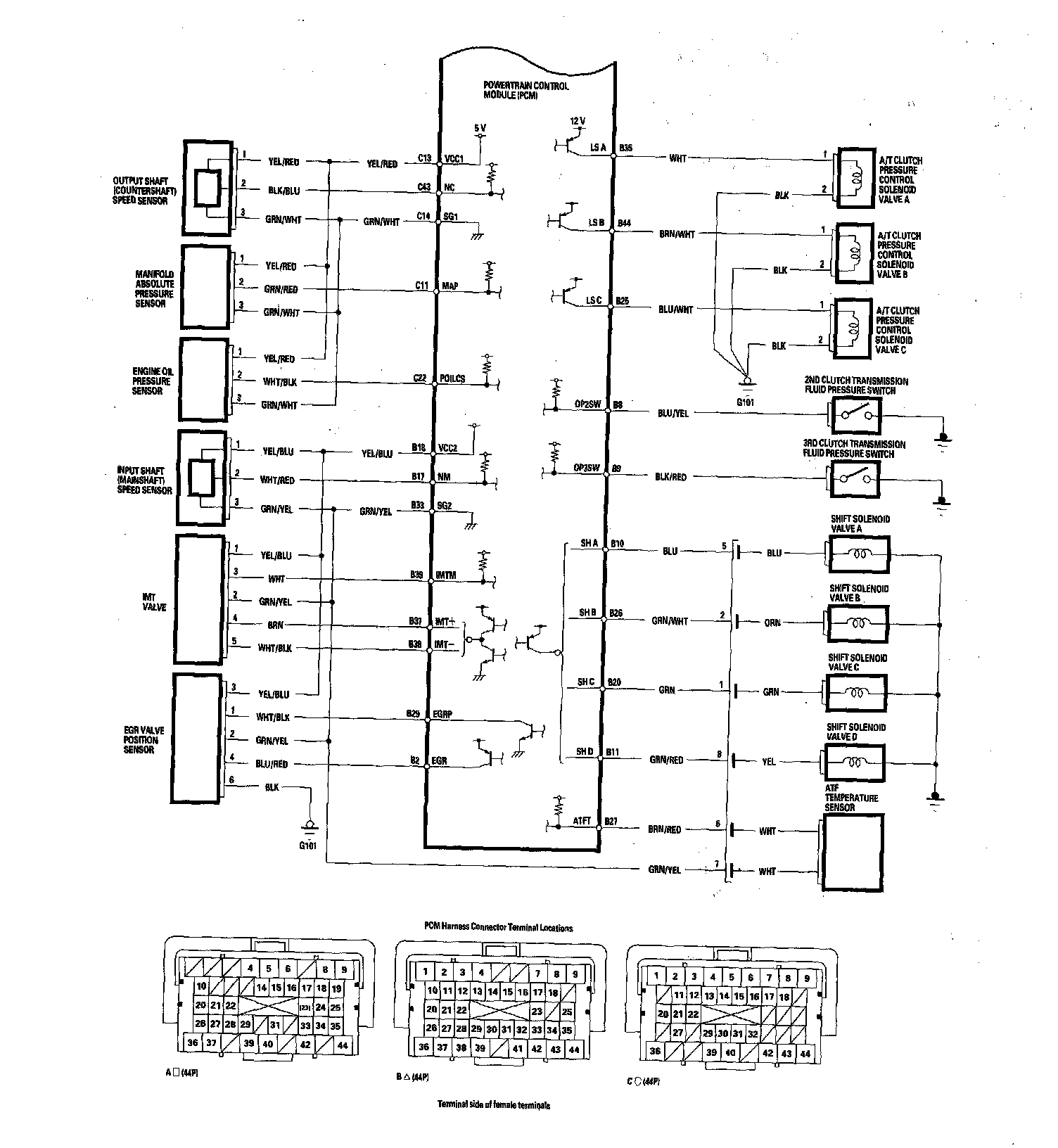

Circuit Diagram - PCM A/T Control System (Part 1):
Circuit Diagram - PCM A/T Control System (Part 2):
